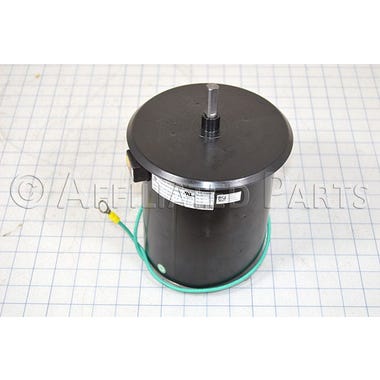

Source 1 S1-6007531 Condenser Fan Motor - 1/3 HP - 208-230V - A.O. Smith #F48T70A50

Product Description

The Source 1 S1-6007531 is a condenser fan motor designed for HVAC applications. This motor operates at 230V and delivers a 1/3 horsepower performance. With a speed of 850 RPM, it provides efficient operation for various condenser fan systems. The motor features a Totally Enclosed Air Over (TEAO) design for added protection against environmental conditions, ensuring durability and longevity.

• Operates at 230V with a single-phase design.
• Features a 1/2 inch diameter shaft with a length of 3.8 inches.
• Designed for counter-clockwise rotation (CCWLE) with a consistent speed.

Product Highlights

This motor is ideal for use in outdoor condenser units and is compatible with multiple HVAC systems, including Coleman and Evcon models. It serves as a replacement for A.O. Smith #F48T70A50, simplifying the replacement process for technicians.

Product Information

Standard Information

• Brand: Source 1
• HP Rating: 1/3

Technical Specifications

• Voltage: 230V
• Phase: 1
• RPM: 850
• FLA: 2.3
• Hertz: 60
• Frame: 48Y
• Enclosure: TEAO
• Rotation: CCWLE
• Number of Speeds: 1
• Shaft Diameter: 1/2 inch
• Shaft Length: 3.8 inches
• OEM Replacement: A.O. Smith #F48T70A50
• Weight: 15.83 lb
• Dimensions: 11.30 inches x 8.00 inches x 8.40 inches
