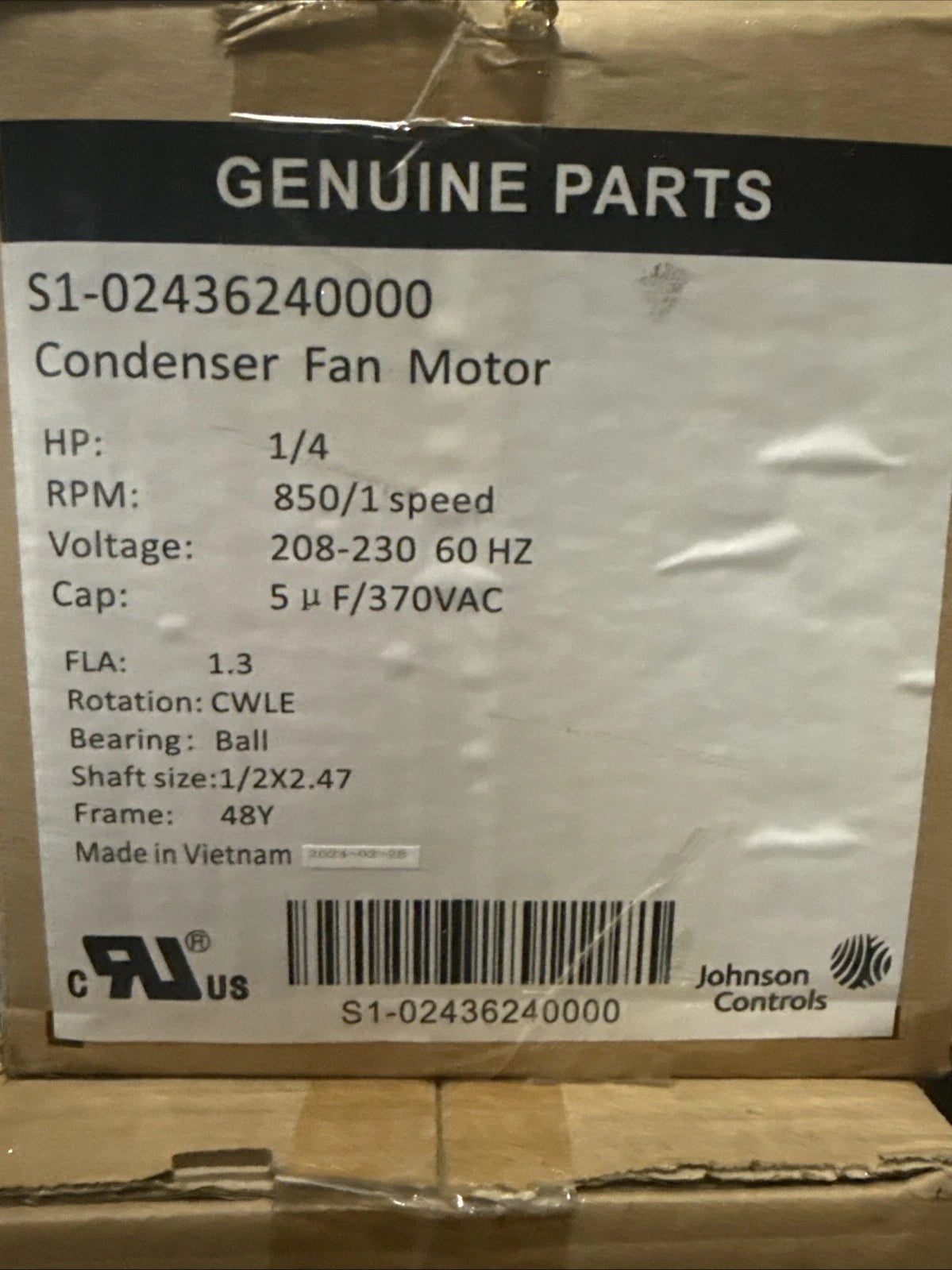

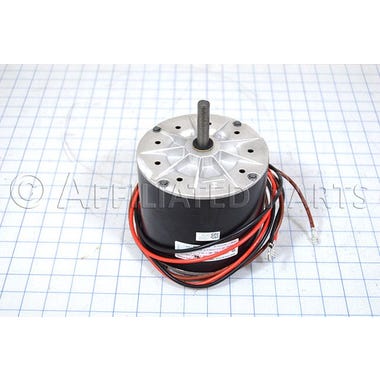

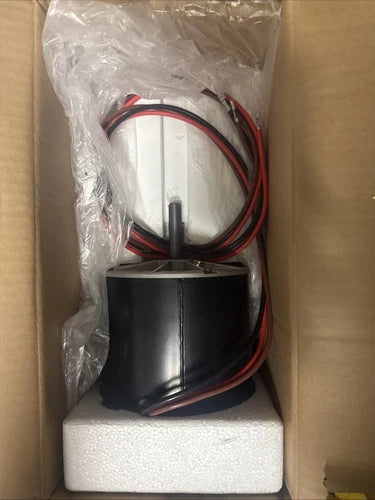

Source 1 S1-02436240000 Condenser Fan Motor - 1/4 HP

Product Description

The Source 1 S1-02436240000 is a condenser fan motor designed specifically for central air conditioner applications. This motor operates at 230 volts and 60 hertz with single-phase power. It delivers a power output of 1/4 horsepower at 850 RPM, ensuring reliable operation. Compatible with models such as EBBC-F060SG, CMA06011A, and H1RC036S25, the fan motor supports airflow volumes between 100 and 499 cubic feet per minute (CFM). Manufactured in China, this motor is a dependable component for your HVAC system.

• Operates at 230 volts and 60 hertz with single-phase power
• Delivers 1/4 horsepower at 850 RPM with clockwise rotation
• Compatible with various popular HVAC models

Product Highlights

This condenser fan motor is engineered for efficiency and durability, ensuring optimal performance in maintaining air conditioning systems.

Product Information

Standard Information

• Brand: Source 1
• Model: S1-02436240000

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 230 V
• RPM: 850
• Rotation: Clockwise
• Air Flow Volume: 100-499 CFM (170-848 m3/h)
• Number of Speeds: 1
• Compatible Models: EBBC-F060SG, CMA06011A, H1RC036S25
• Shipping Weight: 12.50 pounds
• Shipping Dimensions: 7.00 inches (Width) x 14.50 inches (Length) x 7.50 inches (Height)
• Country of Manufacture: China
