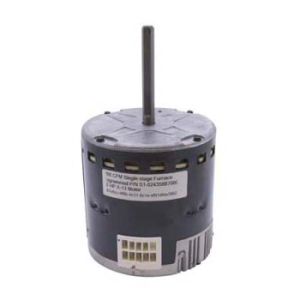

SOURCE 1 S1-02435887000 York Coleman ECM X-13 Blower Motor Assembly 1/2 HP

Product Description

The Source 1 S1-02435887000 York Coleman ECM X-13 Blower Motor Assembly is designed for effective HVAC operation. This blower motor is rated at one-half horsepower and operates on one hundred fifteen volts, ensuring consistent airflow for heating and cooling systems. The Electronically Commutated Motor (ECM) technology enhances energy efficiency while minimizing noise during operation.

• Continuous air over cooling
• Reversible rotation for versatile installation
• Enhanced safety features with electronic protection

Product Highlights

Ideal for maintaining a comfortable indoor environment, this motor offers reliability and performance.

Product Information

Standard Information

• Brand: Source 1
• Model Number: 5SME39HXL708

Technical Specifications

• Horsepower: 1/2
• Voltage: 115
• Hertz: 60/50
• Amperage: 6.80
• Phase: Single
• RPM: 1050
• Electronic Protection: True
• Insulation Class: B
• Duty/Cooling Type: Continuous Air Over
• Rotation: Reversible
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Dimensions: 4
