Source 1 S1-02432068006 Condenser Motor 1.5/1.25 HP

Product Description

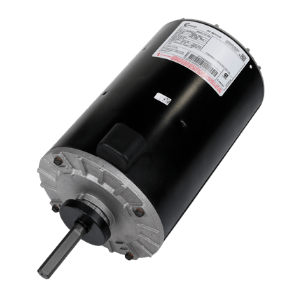

The Source 1 S1-02432068006 is a condenser motor built for Coleman and Evcon equipment. It uses 208-230 VAC three-phase power and has dual horsepower ratings of 1.5 and 1.25 HP. With two speed settings of 1140 RPM and 940 RPM, this motor is reliable and efficient. The NEMA frame size is 56, and it is designed with total enclosure and air over cooling for optimal performance. This motor is suitable for HVAC applications requiring durable and effective operation.

• Operates at 208-230 VAC three-phase power
• Dual speed options of 1140 RPM and 940 RPM
• Compatible with Coleman and Evcon equipment

Product Highlights

This motor provides reliable performance and is efficient for varying operational needs.

Product Information

Standard Information

• Brand: Source 1
• Country of Origin: Mexico

Technical Specifications

• Shipping Weight: 20.00 lbs
• Shipping Width: 8.00 inches
• Shipping Length: 18.80 inches
• Shipping Height: 9.00 inches
• Harmonize Code: 8501.52.4000
