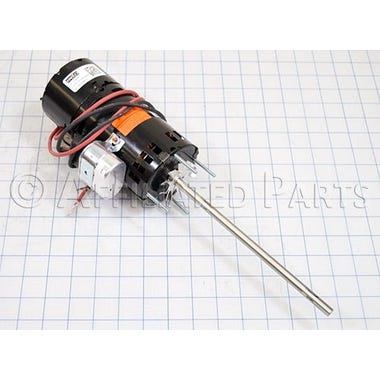

Source 1 S1-02425005004 Vent Motor 1/10 HP 460V

Product Description

The Source 1 S1-02425005004 is a vent motor operating at 460V and 60Hz. This motor provides 1/10 horsepower at 3400 RPM with a single-phase power supply. The motor is designed to rotate clockwise from the end opposite the shaft. It is equipped with an open drip-proof enclosure, suitable for ventilation applications. Its NEMA frame size is 3.3, which corresponds to a 42 frame size, making it a viable option for various HVAC systems. This motor is supported by ball bearings, ensuring smooth operation.

• Operates at 460V and 60Hz.
• Delivers 1/10 horsepower at 3400 RPM.
• Features an open drip-proof enclosure.

Product Highlights

This vent motor is essential for HVAC systems requiring reliable ventilation. Its compatibility with multiple applications and robust design makes it a preferred choice among technicians.

Product Information

Standard Information

• Brand: Source 1
• MPN: S1-02425005004

Technical Specifications

• HP: 1/10
• Voltage: 460V
• Phase: Single
• RPM: 3400
• Enclosure: Open Drip Proof
• NEMA Frame: 3.3
• Weight: 5.60 lb
• Shaft Diameter: 3/8 inches
• Shaft Length: 8 inches
