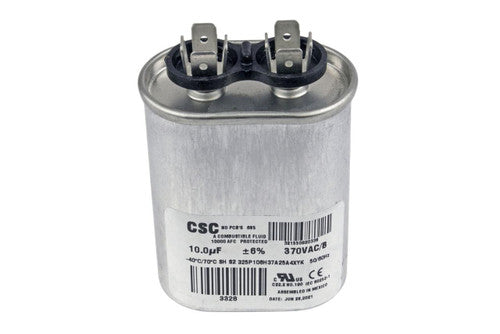

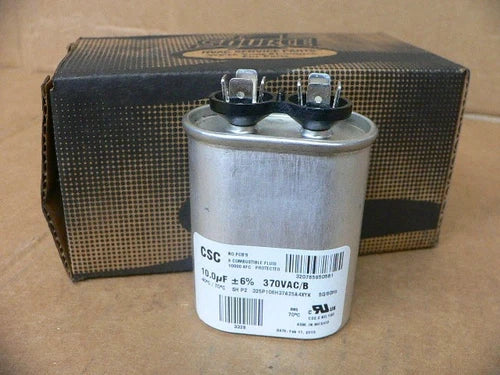

SOURCE 1 S1-02420046700 Single Run Capacitor 370V 10 MFD

Product Description

The SOURCE 1 S1-02420046700 is a single run capacitor suitable for various electrical applications. This capacitor features a capacitance of ten MFD and has a voltage rating of three hundred seventy volts. It operates effectively at fifty to sixty Hertz and has a tolerance range of plus or minus six percent.

• Capacitance: 10 MFD at 370V
• Temperature range: -40 degrees C to 70 degrees C
• Oval shape suitable for compact installations

Product Highlights

This capacitor is designed for reliable performance across a wide temperature range, ensuring stability in various environments.

Product Information

Standard Information

• Brand: Source 1
• MPN: S1-02420046700

Technical Specifications

• Voltage: 370V
• Hertz: 50/60
• Capacitance: 10 MFD
• Tolerance Range: +/- 6%
• AFC: 10,000
• Temperature Range: -40 degrees C to 70 degrees C
• Height of Can: 2-1/2 inches
• Height of Can with Terminals: 3-1/8 inches
• Width of Can: 1-1/4 inches
• Length of Can: 2-1/8 inches
