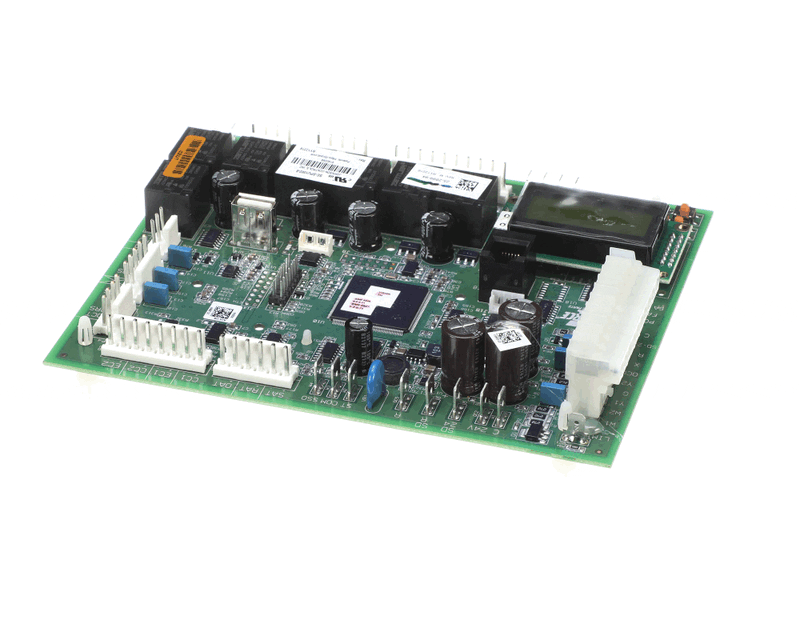

Source 1 6150265 Sse 2 Stage Circuit Board Ver 4.2

Product Description

The SOURCE 1 6150265 is a two-stage integrated circuit board designed for SSE-series HVAC systems, operating without a COMM interface. Version 4.2 of this board manages staged heating or cooling sequences, coordinating blower, burner, or compressor staging logic as required by the system. It serves as a direct OEM-style replacement, making it a reliable choice for HVAC technicians restoring proper staged operation to a system with a failed or damaged control board. This board handles the core sequencing and safety-monitoring functions central to two-stage system performance.

This circuit board is intended for residential or light-commercial HVAC applications where two-stage capacity control is employed. It is suited for installations where the COMM communication port is not used or not required. Technicians performing board swaps in SSE-series equipment will find this a straightforward OEM-replacement solution for restoring staged system functionality.

Key Features

• Two-stage control logic for coordinated capacity management
• Version 4.2 revision for current SSE-series platform compatibility
• Designed without COMM interface, simplifying installation in non-networked systems
• OEM-style replacement supporting proper safety and sequencing functions
• Direct-fit replacement reduces diagnostic and swap time in the field

Compatibility

Designed as an OEM-style replacement circuit board for SSE-series two-stage HVAC systems that do not utilize a COMM communication interface.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect all power to the unit before removing or installing the control board, and verify the system is de-energized before handling any wiring connections. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting terminals. Do not attempt to force-fit the board or modify mounting points.

Technical Specifications

• Control Type: Two-Stage
• COMM Interface: None
• Version: 4.2
• Series: SSE

Standard Information

• Brand: SOURCE 1
• Manufacturer Part Number: 6150265
