Source 1 02431939002 condenser fan motor 1.25 hp CCW S1-02431939002 024-31939-002

Product Description

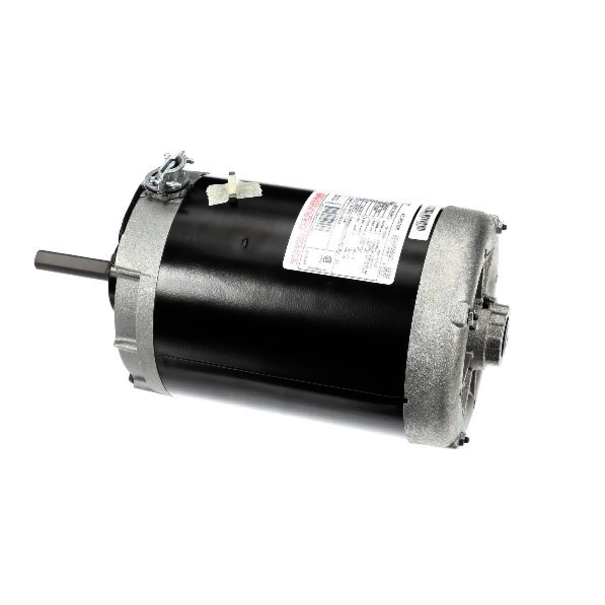

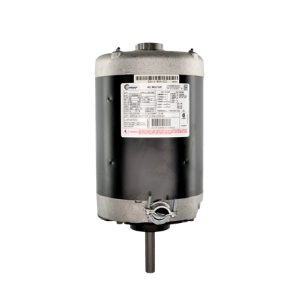

The Source 1 02431939002 is an OEM upgraded condenser fan motor designed for HVAC equipment. This motor is rated at 1.25 HP, operates at 208-230/460 volt, and achieves 1140 RPM. It functions by converting electrical energy into mechanical energy, typically turning the air conditioning fan blade. This specific model is an OEM replacement for older part numbers S1-02431939002 and 024-31939-002, ensuring compatibility with York, Coleman, and Luxaire systems.

• OEM upgraded condenser fan motor for HVAC systems.
• Rated at 1.25 HP, 208-230/460 volt, and 1140 RPM.
• Compatible with York, Coleman, and Luxaire equipment, replacing S1-02431939002 and 024-31939-002.

Product Highlights

This 1.25 HP, 1140 RPM, 208-230/460 volt condenser fan motor features CCW lead end rotation for HVAC applications.

Product Information

Standard Information

• Brand: SOURCE 1
• Manufacturer Part Number: 02431939002

Technical Specifications

• Horsepower: 1.25 HP
• Voltage: 208-230/460 volt
• RPM: 1140
• Replaces Part Numbers: S1-02431939002, 024-31939-002
• Compatible Brands: York, Luxaire, Coleman
• Phase: Three Phase
• Speed: 1 Speed
• Nema Frame Size: 56
• Enclosure Type: Totally Enclosed Air Over
• Rotation: CCW Lead End
