Soss 204IT Router Guide Template for 204 Hinges

Product Description

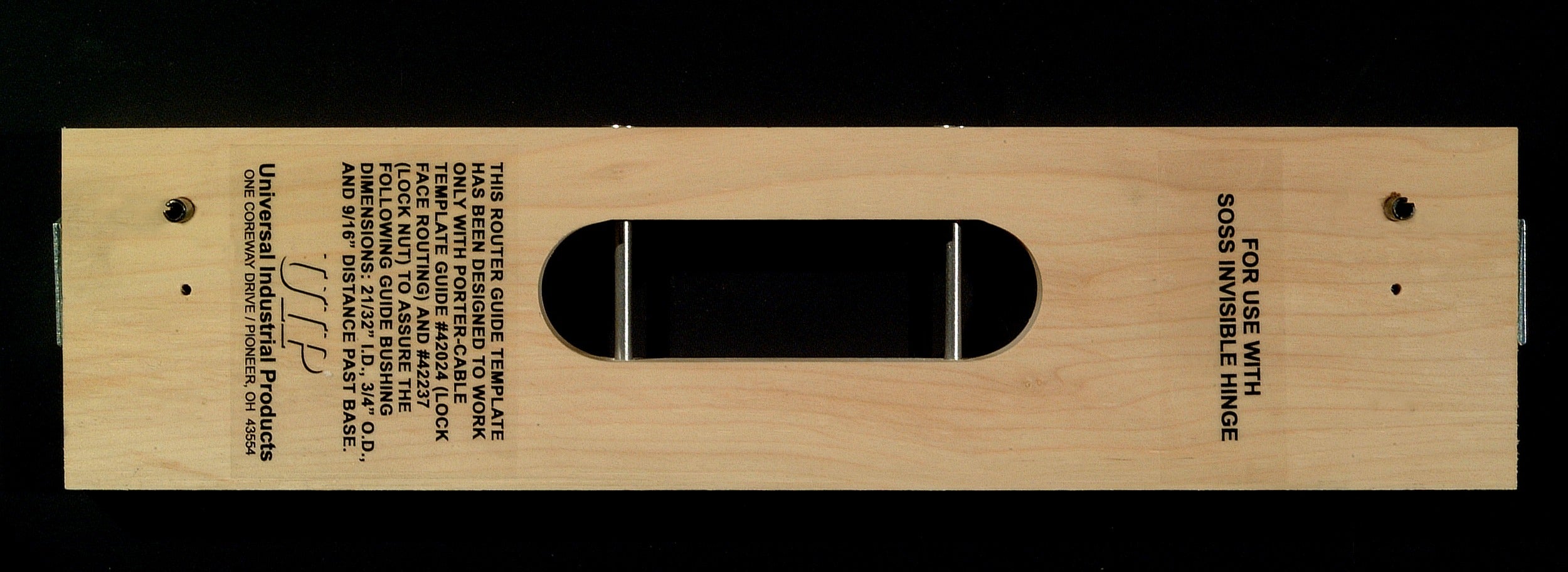

The SOSS / UIP ALLEGION 204IT is a router guide template designed to ensure accurate mortise cuts when installing SOSS 204 series invisible hinges. Precise mortise routing is critical for invisible hinges to operate correctly and close flush with the door and frame. This template guides the router base to produce a consistent, properly sized pocket every time, reducing the chance of misaligned or oversized mortises. Woodworkers, finish carpenters, and door hardware installers use this template as part of a professional SOSS hinge installation workflow.

The 204IT template is intended for use with SOSS 204 series invisible hinges in residential and light commercial door applications. Invisible hinges are commonly installed in interior wood doors where a clean, hardware-free appearance is required. This template is used during the pre-hang or on-site installation stage when doors are being prepped for concealed hardware. It is sold as a single unit and is reusable across multiple door installations.

Key Features

• Engineered specifically for SOSS 204 series invisible hinge mortise routing
• Guides router base for consistent, repeatable mortise cuts
• Compact profile at 12.6 inches long, 3.3 inches wide, and 3.4 inches tall
• Lightweight construction at 0.7 pounds for easy handling on the job
• Reusable design supports multiple door installations per template

Compatibility

Designed for use with SOSS 204 series invisible hinges. Verify hinge series before ordering, as SOSS router guide templates are series-specific and are not interchangeable between different hinge model families.

Installation Notes

Installation of this template and associated hinge hardware is typically performed by finish carpenters or experienced door hardware installers. Secure the template firmly to the door edge or frame before routing to prevent movement during the cut. Use a router bit sized to match the SOSS 204 hinge specification and follow the template guide channel closely for a clean mortise. Always wear appropriate eye and hearing protection when operating routing equipment.
