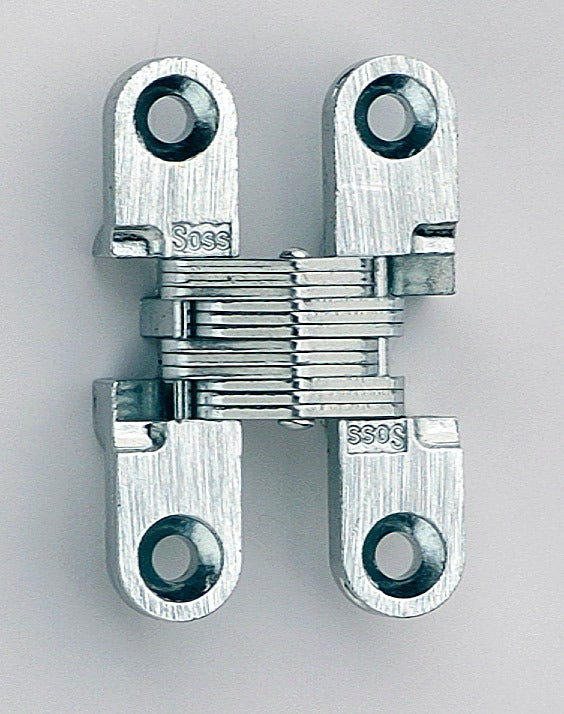

Soss 101CUS26D Light Duty Invisible Hinge Satin Chrome

Product Description

The SOSS 101CUS26D is a light duty invisible hinge designed for interior doors with a thickness of 1/2 inch to 5/8 inch. When installed, the hinge sits completely concealed within the door and frame, leaving no hardware visible from either side when the door is closed. The hinge accommodates a frame mortise range of 3/8 inch to 1-11/16 inch and measures 4.72 inches in length by 2.67 inches in width with a 0.39 inch profile. The satin chrome finish provides a clean, neutral appearance suited to residential and light commercial millwork applications. Each unit is sold as a pair and weighs 0.2 pounds.

The 101CUS26D is intended for lightweight interior door installations where concealed hardware is a design or specification requirement. Typical applications include interior passage doors, cabinet doors, and built-in furniture panels in residential construction and light commercial fit-out work. It is most often installed by carpenters, finish carpenters, or millwork contractors during door-hanging or cabinetry phases of construction.

Key Features

• Fully invisible when door is closed — no exposed knuckle or barrel
• Fits doors 1/2 inch to 5/8 inch thick
• Frame mortise range of 3/8 inch to 1-11/16 inch
• Satin chrome finish for a clean, understated look
• Compact profile at 0.39 inch depth
• Sold as a pair (one set per order unit)

Compatibility

Designed as an OEM-style replacement or new-install invisible hinge for light duty interior doors ranging from 1/2 inch to 5/8 inch in thickness.

Installation Notes

Installation is performed by a carpenter or finish carpenter using standard mortise chisels and a drill. The door and frame must be accurately mortised to the hinge dimensions before fitting — precise layout is critical for proper concealment and swing. Ensure the door is fully supported and stable during installation to avoid misalignment. Refer to the manufacturer installation template if provided, as invisible hinges have tighter tolerance requirements than conventional butt hinges.
