Sony j-7120-140-a Pld Download Jig

Product Description

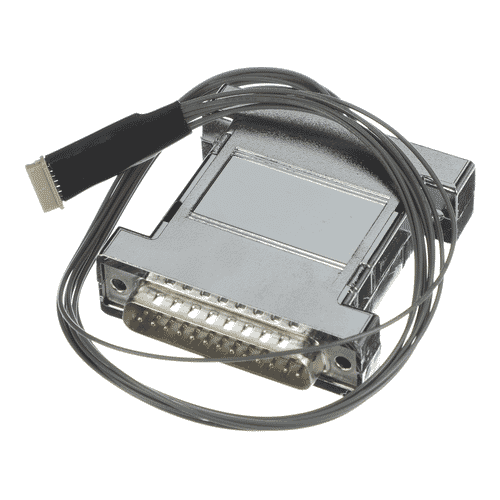

The SONY j-7120-140-a is a PLD download jig used for programming and firmware loading on compatible Sony professional digital equipment. This jig provides a direct interface between a programming source and the target device's programmable logic device, allowing field technicians and service engineers to load or update firmware on supported hardware. It is a service-level tool intended for use by qualified Sony-trained technicians or authorized service centers working within professional AV and broadcast environments.

This download jig is designed for use in professional digital service applications where PLD firmware updates or initial programming are required. It is typically deployed during bench service or depot-level repair workflows, where technicians need a reliable, repeatable connection to the target PLD component on a Sony professional board or assembly.

Key Features

• Provides direct PLD programming interface for compatible Sony professional digital hardware
• Designed for use in authorized service center and depot repair environments
• Supports firmware download and programmable logic device initialization workflows
• Built as an OEM Sony service tool for consistent, repeatable programming results

Compatibility

Designed as an OEM Sony service jig for use with compatible Sony professional digital equipment requiring PLD firmware programming. Consult Sony service documentation to confirm compatibility with the specific target assembly before use.

Installation Notes

This tool should be handled and operated by qualified service technicians familiar with Sony professional digital service procedures. Power down and disconnect all power sources from the target equipment before connecting the jig. Follow all applicable Sony service manual procedures for PLD download operations. Improper use or connection to unsupported assemblies may result in device damage or failed programming.

Technical Specifications

• Product Type: PLD Download Jig

Standard Information

• Brand: SONY
• Manufacturer Part Number: j-7120-140-a
