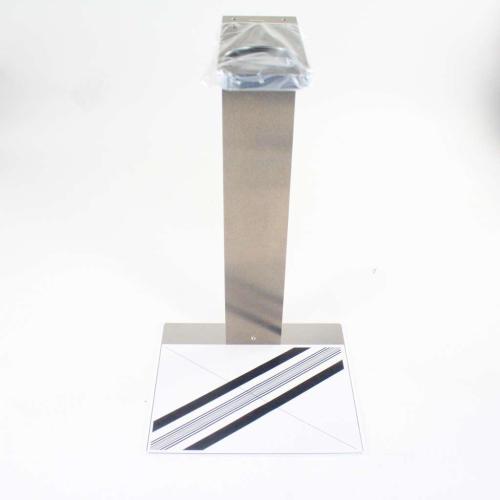

Sony j-6082-563-c Flange Back Adjustment Jig

Product Description

The SONY j-6082-563-c is a flange back adjustment jig used to set and verify the flange back distance on compatible Sony optical and imaging assemblies. Flange back distance — the measurement from the lens mount flange to the focal plane — is a critical alignment value in camera and imaging systems. Proper adjustment ensures accurate focus across the full focal range. This jig is a factory-style service tool intended for use by qualified electronics repair technicians and Sony-authorized service centers performing lens mount calibration and optical alignment procedures.

This adjustment jig is suited for bench-level service work on Sony consumer electronics and imaging equipment where flange back calibration is required. It is typically used during lens mount replacement, optical block service, or post-repair calibration to confirm that the flange-to-sensor distance meets factory specification. Installation and use should be performed by technicians with familiarity with Sony imaging system service procedures.

Key Features

• Purpose-built jig for flange back distance adjustment and verification
• Designed as a factory-style service and calibration tool
• Supports accurate optical alignment during lens mount or imaging assembly service
• Intended for use by authorized Sony service technicians

Compatibility

Designed as an OEM-style service jig for Sony consumer electronics and imaging equipment requiring flange back adjustment. Refer to the applicable Sony service manual to confirm compatibility with the specific unit being serviced.

Installation Notes

This tool is intended for use by qualified electronics service technicians in a controlled bench environment. Power down and disconnect all energy sources from the device under service before beginning any optical or mechanical disassembly. Follow the procedures outlined in the Sony service documentation for the specific model being serviced. Use of this jig outside of documented service procedures may result in improper calibration or damage to the optical assembly.

Technical Specifications

• Application: Flange back distance adjustment and calibration
• Tool Type: Adjustment jig

Standard Information

• Brand: SONY
• Manufacturer Part Number: j-6082-563-c
