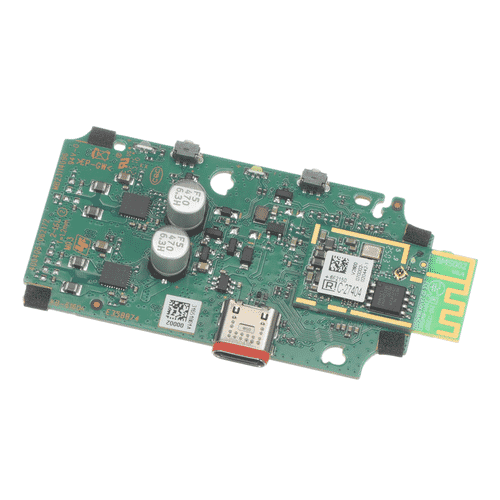

Sony 9-301-023-63 Main Board Complete

Product Description

The SONY 9-301-023-63 is a complete main board assembly designed as a direct OEM replacement component for Sony consumer electronics equipment. The main board serves as the central processing hub of the unit, managing core system functions including signal processing, power distribution, and communication between internal components. This type of board is typically sourced and installed by qualified electronics repair technicians during depot-level or field service repairs on Sony devices.

This main board is intended for use in Sony consumer electronics applications where the original main board has failed or become damaged. It is supplied as a complete assembly, meaning no additional sub-components are required to bring the board to its original functional configuration. Technicians performing board-level replacements will find this a direct swap for the factory-installed unit.

Key Features

• Complete main board assembly — no additional sub-components required
• OEM Sony part designed to restore original system functionality
• Serves as the central processing and signal management hub of the host unit
• Direct replacement format simplifies installation and reduces diagnostic complexity

Compatibility

Designed as an OEM-style replacement main board for compatible Sony consumer electronics equipment. Verify the exact model number of the host unit against Sony service documentation before ordering to confirm fitment.

Installation Notes

Main board replacement should be performed by a qualified electronics repair technician familiar with Sony service procedures. Disconnect and fully power down the host unit and discharge any residual capacitor energy before handling the board. Use proper ESD precautions throughout the procedure to prevent damage to sensitive components. Consult the applicable Sony service manual for connector locations and reassembly sequence.

Technical Specifications

• Component Type: Main Board, Complete Assembly

Standard Information

• Brand: SONY
• Manufacturer Part Number: 9-301-023-63
