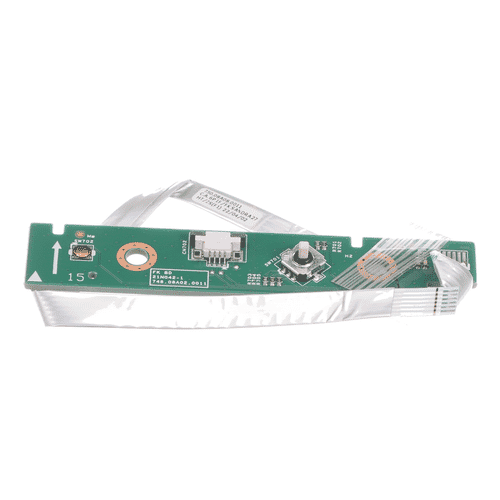

Sony 1-015-575-11 Mounted Pwb Fk Board Key

Product Description

The SONY 1-015-575-11 is a mounted printed wiring board (PWB) configured as an FK key board, designed to handle keypad input and control functions within compatible Sony consumer electronics units. This type of board serves as the physical interface between user-operated buttons and the main system logic, translating mechanical presses into electronic signals. Installation is typically performed by qualified electronics repair technicians or factory-authorized service personnel with experience in PCB-level component replacement.

The 1-015-575-11 is intended for use in Sony consumer electronics requiring a dedicated key input board. Based on the raw product data, this part is referenced under model designator SDMU27M90, indicating fitment within that specific Sony product line. Technicians sourcing this board for board-level or unit-level repair should verify the model and revision against the service documentation prior to ordering.

Key Features

• Mounted PWB construction provides a ready-to-install, pre-assembled board assembly
• Functions as the FK key input board, handling front-panel or user-interface button signals
• OEM Sony part, manufactured to original factory specifications
• Referenced under Sony model designator SDMU27M90

Compatibility

Compatible with Sony consumer electronics units referencing model designator SDMU27M90, as indicated in the product data. Verify exact model number and board revision against Sony service documentation before installation.

Installation Notes

Installation should be performed by a qualified electronics repair technician familiar with PCB-level service procedures. Disconnect all power to the unit before removing or installing any circuit board assembly. Use proper anti-static precautions, including a grounded wrist strap, to prevent electrostatic discharge damage to the board or surrounding components. Refer to the manufacturer service manual for connector locations and board seating requirements specific to the host unit.

Technical Specifications

• Part Type: Mounted Printed Wiring Board (PWB) - FK Key Board
• Reference Model: SDMU27M90

Standard Information

• Brand: SONY
• Manufacturer Part Number: 1-015-575-11
