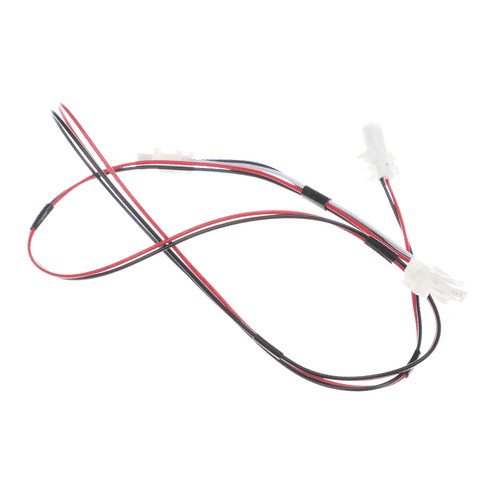

Sony 1-006-513-34 4-pin Connector Assembly

Product Description

The SONY 1-006-513-34 is a 4-pin connector assembly used in Sony consumer electronics equipment. This OEM replacement part restores electrical connections within compatible Sony devices and is intended for installation by qualified electronics repair technicians. The assembly provides a secure, factory-spec interconnect point for internal wiring harnesses or board-to-board signal paths. It is a direct Sony-sourced component, making it appropriate for warranty-compliant and out-of-warranty repair work alike.

This connector assembly is suited for use in Sony consumer electronics repair applications. Technicians servicing Sony audio, video, or display equipment will encounter this style of multi-pin connector at internal harness termination points. Because the supplier data does not specify a particular product line or model series, verification against the target unit's service manual or parts diagram is recommended before ordering.

Key Features

• 4-pin configuration for multi-conductor internal wiring connections
• OEM Sony part ensuring factory-spec fit and electrical performance
• Designed for direct replacement of a failed or damaged connector assembly
• Compact assembly format suited for tight internal chassis routing

Compatibility

Designed as an OEM-style replacement connector assembly for compatible Sony consumer electronics devices. Confirm fitment against the applicable Sony service manual or illustrated parts catalog before installation.

Installation Notes

Installation should be performed by a qualified electronics repair technician familiar with Sony service procedures. Disconnect and fully discharge the device from all power sources before handling internal connectors or wiring assemblies. Use appropriate ESD precautions when working near circuit boards and sensitive internal components. Consult the device service manual for correct connector orientation and seating confirmation.

Technical Specifications

• Pin Count: 4
• Component Type: Connector Assembly

Standard Information

• Brand: SONY
• Manufacturer Part Number: 1-006-513-34
