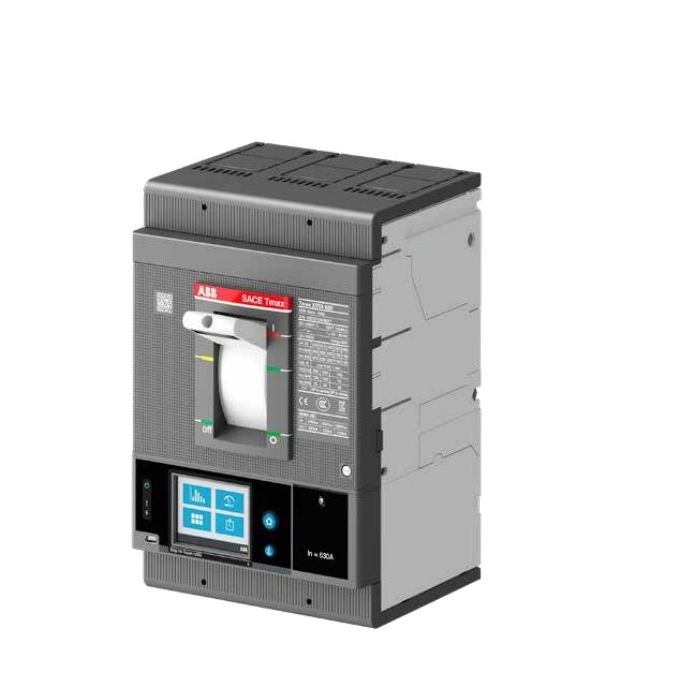

Solutions XT5HU340AFFN000XXX Type XT Molded Case Circuit Breaker 400 Amp

Product Description

The SOLUTIONS XT5HU340AFFN000XXX type XT molded case circuit breaker is a heavy-duty, low-voltage breaker designed for main breaker kit MBM334. This 3-pole, 600 VAC, 400 amp circuit breaker features an Ekip DIP LSI trip unit and offers a max interrupt rating of 200 kA at 480 VAC and 100 kA at 600 VAC. It operates between -25°C and +70°C.

• Compact, powerful, and flexible design
• Max. interrupt rating of 200 kA at 480 V, 100 kA at 600 V
• Advanced electronic trip units are future-ready with the ability to download additional measurements and logic

Product Highlights

This heavy-duty circuit breaker provides reliable protection with high breaking capabilities and flexible integration for various applications.

Product Information

Standard Information

• Brand: SOLUTIONS
• Manufacturer Part Number: XT5HU340AFFN000XXX

Technical Specifications

• Manufacturer: ABB - Low Voltage Drives
• Amperage Rating: 400 Amp
• Number of Poles: 3
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 ka @480 VAC, 100 ka @ 600 VAC Max Interrupt
• Trip Type: Ekip DIP LSI
• Type: Heavy Duty, Low Voltage
• Series: Tmax, XT, XT5
• Frequency Rating: 50 - 60 Hz
• Frame: XT5 400A
