Solutions TGF3225AR Sw Fused Gd 400A 2P 240V N3R A

Product Description

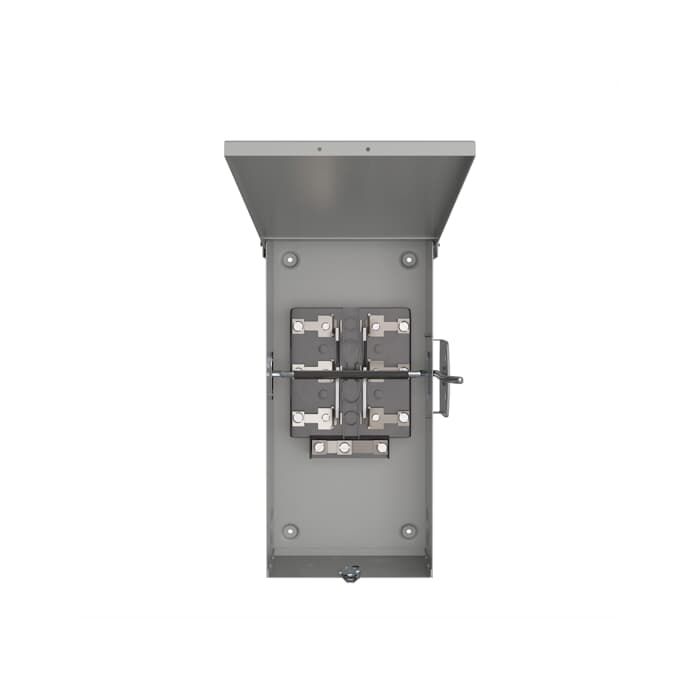

The SOLUTIONS TGF3225AR is a safety switch designed for residential and light commercial applications. This general duty switch is rated for 240V AC and 400A, featuring a 2-pole, 3-wire configuration. It is enclosed in a NEMA 3R enclosure for outdoor use and is UL and cUL listed. The switch is suitable for use as service equipment when installed according to the National Electrical Code.

• Rated for 240V AC and 400A
• Features a 2-pole, 3-wire configuration
• NEMA 3R enclosure for outdoor use

Product Highlights

This safety switch is ideal for residential and light commercial applications, providing a reliable and easy-to-install solution.

Product Information

Standard Information

• Brand: SOLUTIONS
• Manufacturer Part Number: TGF3225AR

Technical Specifications

• Category: General Duty
• Voltage: 240 AC
• Amperage: 400 A
• Poles: 2
• Wires: 3
• Fusing: Fusible
• Enclosure: NEMA 3R (Outdoor)
• Wire Range (Cu/Al): (1) 2-600 or (2) 1/0-250
• 240 Vac, NEC Std, 1-ph: 50.0 hp
• 240 Vac, NEC Std, 3-ph: 125.0 hp
• 480 Vac, NEC Std, 3-ph: 250.0 hp
• 600 Vac, NEC Std, 3-ph: 350.0 hp
• 250 Vdc: 50.0 hp
• cUL Listed: Yes
• UL Listed: Yes
• Height: 54.5 in
• Depth: 9.35 in
• Width: 21.6 in
• Manufacturer: ABB - Low Voltage Drives
• Type: Fused, General Duty
