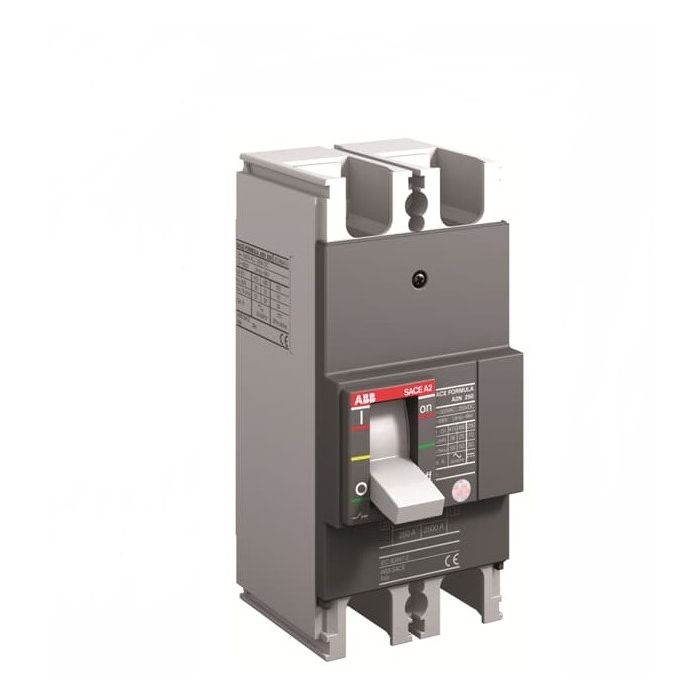

Solutions A2A2200ABDXXXX Formula A Molded Case Circuit Breaker 200 Amp

Product Description

The SOLUTIONS A2A2200ABDXXXX is a Formula A2 main/branch feeder circuit breaker rated at 200 A. This 2-pole breaker features a TMF thermal-magnetic trip unit and a 10 kA interrupt rating at 240 VAC. It has load side lugs that support Cu 1x 1-250; Al 1x 2/0-300 conductors.

• 200 A amperage rating
• TMF thermal-magnetic trip unit
• 10 kA interrupt rating at 240 VAC

Product Highlights

The SOLUTIONS A2A2200ABDXXXX circuit breaker is suitable for main and branch feeder applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: SOLUTIONS
• Manufacturer Part Number: A2A2200ABDXXXX

Technical Specifications

• Manufacturer: ABB - Low Voltage Drives
• Amperage Rating: 200 A
• Number of Poles: 2-Pole
• Voltage Rating: 240 VAC
• Interrupt Rating: 10 kA @240 VAC
• Trip Type: TMF, Thermal-magnetic
• Type: Low Voltage, Compact
• Series: FORMULA, A2
• Frequency Rating: 50 - 60 Hz
• Frame: A2, 250
