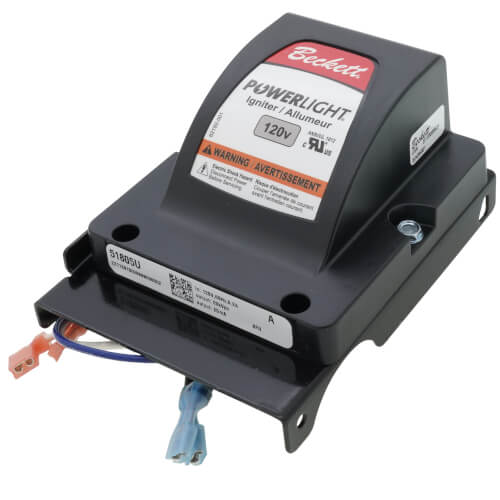

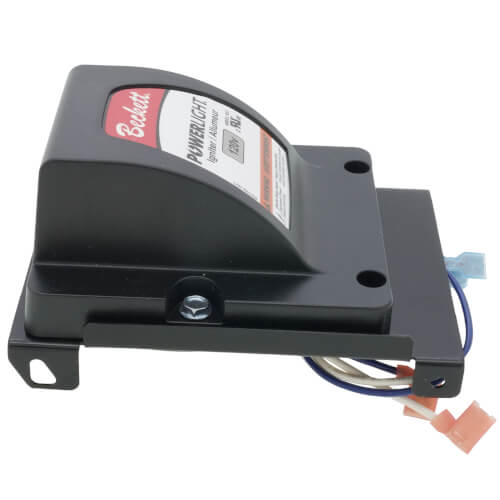

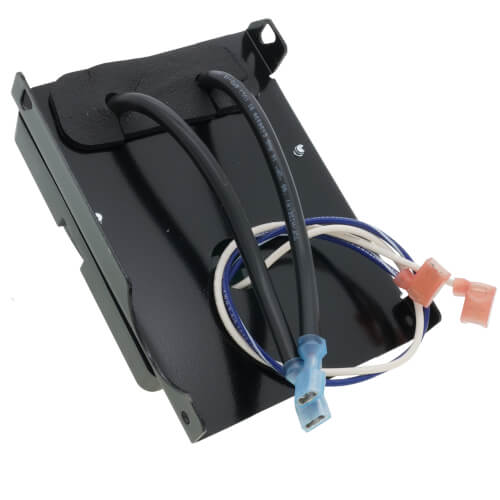

Beckett 51805U Solid State Ignitor For AFII Burner Replaces 5260101U 51402U & 747501

Product Description

The Beckett 51805U Solid State Ignitor is an essential component for AFII burners, designed to replace units 5260101U, 51402U, and 747501. This product ensures efficient and reliable ignition for your heating systems.

• Enhanced durability with robust construction
• Advanced solid-state technology for reliable ignition
• Compact design for easy installation and compatibility with multiple baseplates

Product Highlights

This ignitor is built to withstand industrial environments and reduces maintenance downtime. Its innovative technology and versatile design make it ideal for continuous operation and performance.

Product Information

Standard Information

• Input Voltage: 120 VAC, 60 Hz
• Output Voltage: 6 kV RMS, 20kV Peak

Technical Specifications

• Weight: 1.94 lbs
• Dimensions: 5 x 5 x 5 inches
• Operating Temperature: -20 to 150 degrees Fahrenheit
• Storage Temperature: -40 to 150 degrees Fahrenheit
• Output Current: 35 mA RMS
• Case Material: High-impact thermoplastic
