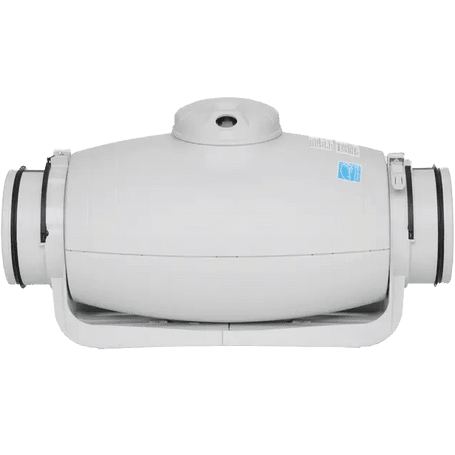

SOLER & PALAU TD-200S TD-Silent Mixed Flow Inline Duct Fan

Product Description

The SOLER & PALAU TD-200S is an eight-inch, low-profile mixed flow duct fan suitable for quiet operation in various environments. This model is useful in residential, commercial, and industrial settings. It features a single-speed motor and is made from reinforced plastic for durability. The fan is designed to minimize noise through sound-absorbent insulation and rubber gaskets.

• Mixed flow impeller enhances airflow performance.
• Single-speed motor for consistent operation.
• Rotatable terminal box allows flexible installation.

Product Highlights

This duct fan is ideal for areas with limited headspace, ensuring efficient air circulation without excessive noise.

Product Information

Standard Information

• Brand: SOLER & PALAU
• MPN: TD-200S

Technical Specifications

• Type: Low Noise Inline Duct Fan
• Blade Diameter: Eight inches
• Duct Diameter: Eight inches
• Maximum CFM: 530
• Speed: One
• Nominal RPM: 2200
• Voltage: 110-120 V
• Power Consumption: 115 W
• Horsepower: 0.25
• Product Dimensions: Twelve by Six by Twelve inches
• Weight: 19.2 lbs
• Application: Commercial/Industrial, Ducting, Residential
• Energy Star: Yes
• Certifications: HVI, UL, cUL, cULus
• Color: White
