SOLER & PALAU TD-150S Soler & Palau TD-Silent Mixed Flow Inline Duct Fan

Product Description

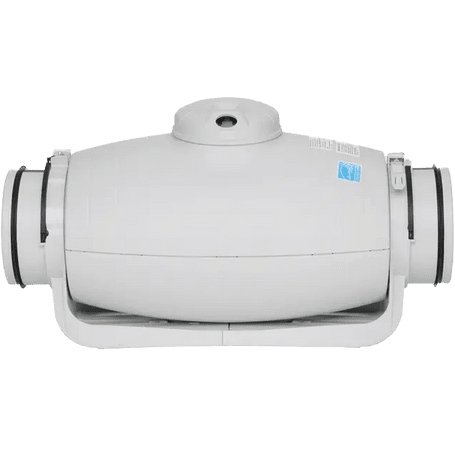

The Soler & Palau TD-150S is a mixed-flow in-line duct fan designed to provide quiet and effective air movement. This fan is made from reinforced plastic for durability and features sound-absorbing insulation to keep noise levels low during operation. It includes rubber gaskets on the inlet and outlet, which help minimize vibrations and create an airtight seal.

• Mixed flow impeller for optimal airflow performance
• Single-speed, direct connection motor
• Rubber gaskets included for noise reduction

Product Highlights

Ideal for various applications in residential, commercial, and industrial spaces with limited installation area.

Product Information

Standard Information

• Brand: SOLER & PALAU
• MPN: TD-150S

Technical Specifications

• Fan Type: In-Line Fan
• Application: Commercial/Residential/Industrial
• Duct Diameter: 6 inches
• Maximum CFM: 333
• Nominal RPM: 2700
• Input Voltage: 110-120 V
• Frequency: 60Hz
• Power Consumption: 60.9 W
• Current: 0.53 Amps
• Maximum Air Temperature: 140 degrees F
• Certifications: HVI, UL, cUL, cULus
• Energy Star: Yes
• Height: 10.81 inches
• Width: 8.68 inches
• Depth: 19.06 inches
• Weight: 13.2 lbs.
• Number of Speeds: Variable
• Controls: Electronic
• Thermal Cutoff Protection: Yes
• Power Supply: Hardwired
