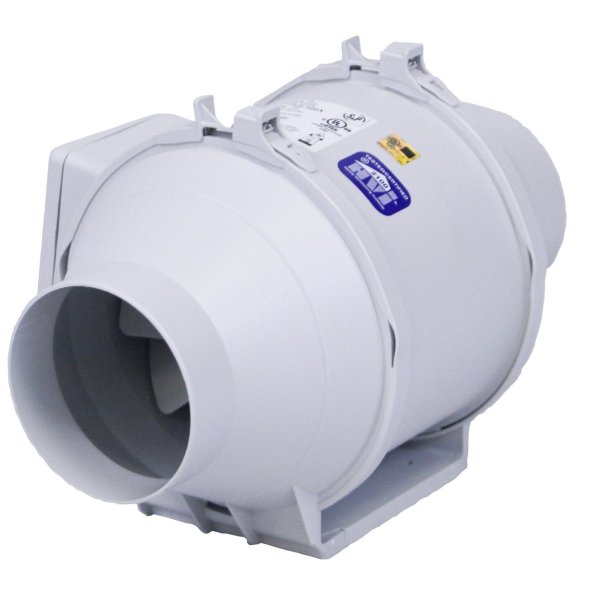

SOLER & PALAU TD-100X1 In-Line Mixed Flow Duct Fan

Product Description

The Soler & Palau TD-100X1 is a reliable in-line mixed flow duct fan designed for various ventilation setups. It effectively optimizes airflow while minimizing noise, thanks to its compact housing. The fan features a practical removable body, allowing the motor-impeller assembly to be easily accessed without disturbing the ducting. Its mixed flow impeller and internal air vanes facilitate laminar airflow, ensuring reduced turbulence and noise levels. This fan is ideal for residential, commercial, and industrial exhaust or intake ventilation.

• Mixed flow impeller enhances airflow efficiency.
• Compact design suitable for tight spaces.
• Removable body simplifies maintenance tasks.

Product Highlights

This duct fan streamlines ventilation processes in limited spaces while ensuring effective airflow management.

Product Information

Standard Information

• Brand: Soler & Palau
• Model: TD-100X1

Technical Specifications

• Duct Diameter: 4 inches
• Maximum Airflow: 135 cfm
• Speed: 2500 rpm
• Input Voltage: 120 V
• Frequency: 60 Hz
• Power Consumption: 33 W
• Current: 0.24 A
• Maximum Static Pressure: 0.55
• Maximum Operating Temperature: 104 deg F
• Minimum Operating Temperature: -4 deg F
• Number of Speeds: 2
• Phase: 1 ph
• Impeller Material: Plastic
• Drive Type: Direct
• Dimensions: 11-15/16 inches L x 7-3/8 inches W
• Weight: 4 lbs
