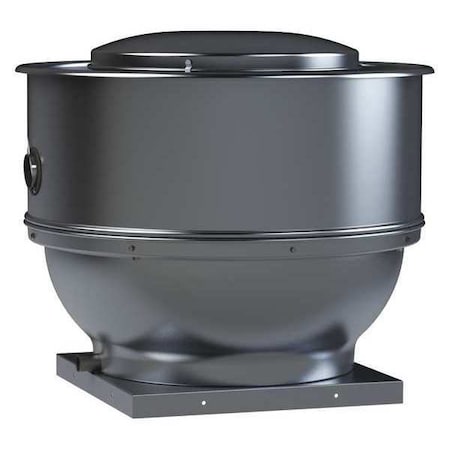

Soler & Palau STXD14RHULMM1AS Upblast Centrifugal Fan 1/4HP

Product Description

The SOLER & PALAU STXD14RHULMM1AS upblast centrifugal fan is designed for high static pressure applications. Its aluminum exterior provides an attractive appearance. The backward inclined wheel makes it suitable for ducted or non-ducted applications. Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, and chemical process exhaust.

• Temperature rating up to 300 degrees F
• Direct drive units have low sound levels and quiet operation
• Roof or sidewall mounting options

Product Highlights

This direct drive centrifugal fan is suitable for removing contaminated and high-temperature air from processes and buildings.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD14RHULMM1AS
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Centrifugal Fan
• Country of Origin (subject to change) [Specifications]: United States
• Blade Diameter: 14"
• Blade Material: Aluminum
• CFM: 2148
• Country of Origin: USA
• Drive Type: Direct Drive
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower (hp): 1/4
• Made in the USA: Yes
• Phase: 1 Phase
• Speed: Variable Speed
• Voltage: 110-120V
• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Direct Drive
• Wheel Size (in.): 14
• Max. BHP: 0.26
• RPMs: 1100
• Max. Static Pressure WG (in.): 5/8
• Sones Level: 12.4 @ 1/8 SP
• CFM @ Zero Static Pressure: 2148

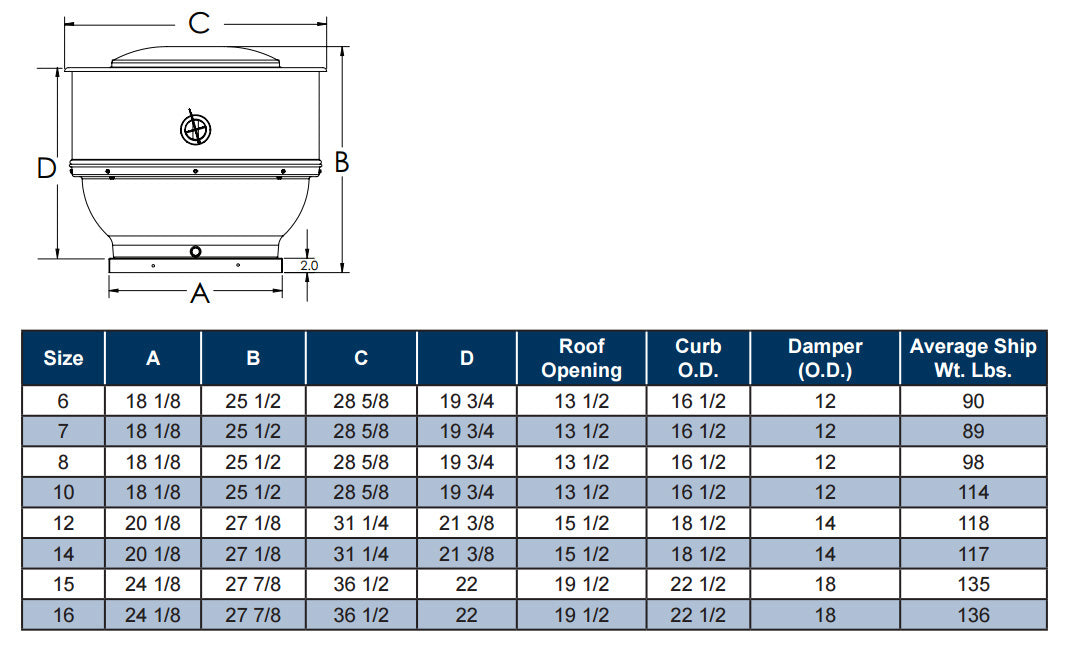

• Roof Opening (in.): 15.5
• Width (in.): 31.25
• Depth (in.): 31.25
• Height (in.): 27.125
• Net Weight (lbs.): 117
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
