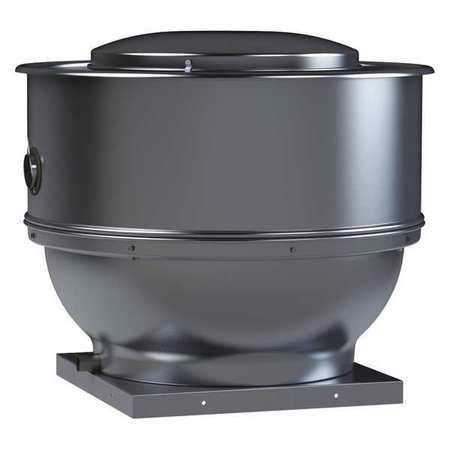

Soler & Palau STXD12RHULQH1AS Upblast Centrifugal Fan 1/2Hp 1P 1625Rpm

Product Description

The SOLER & PALAU STXD12RHULQH1AS is an upblast centrifugal fan. Designed to exhaust air in high static pressure applications, its aluminum exterior provides an attractive appearance. The backward inclined wheel makes this unit suitable for ducted or non-ducted applications. It is ideal for removing dirty, contaminated, and/or high-temperature air.

• Suitable for restaurant applications and is rated for continuous use
• Features aluminum construction and a backward-inclined curved centrifugal wheel
• Dynamically balanced for long lasting, smooth operation

Product Highlights

This centrifugal fan is designed for efficient and quiet operation, suitable for various exhaust applications with roof or sidewall mounting options.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD12RHULQH1AS
• Country of Origin: United States

Technical Specifications

• Manufacturer: Soler & Palau
• Brand: Soler & Palau
• MPN: STXD12RHULQH1AS
• Product Type: ELECTRONIC_COMPONENT_FAN
• Blade Diameter: 12"
• Blade Material: Aluminum
• CFM: 1918
• Country of Origin: USA
• Drive Type: Direct Drive
• Hertz: 60
• Horsepower: 0.5
• Phase: 1 Phase
• Product Weight: 82 lbs
• Speed: Variable Speed
• Voltage: 120 / 208 / 240
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Wheel Size (in.): 12
• RPMs: 1700
• Max. Static Pressure WG (in.): 1
• Sones Level: 15.3 @ 1/8 SP
• CFM @ Zero Static Pressure: 1918
• Roof Opening (in.): 15.5
• Width (in.): 31.25
• Depth (in.): 31.25
• Height (in.): 27.125
• Net Weight (lbs.): 118
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
