Product Description

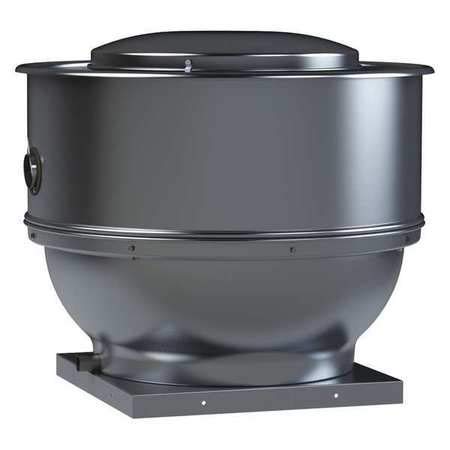

The SOLER & PALAU STXD12RHULMM1AS upblast centrifugal fan is designed for high static pressure applications. Features an attractive spun aluminum exterior and a non-overloading backward inclined wheel, making it suitable for ducted or non-ducted applications. Ideal for removing dirty, contaminated, and high-temperature air from various processes and buildings.
- Direct drive units ensure low sound levels and quiet operation.
- Suitable for roof or sidewall mounting.
- UL762 Listed for restaurant applications.
Product Highlights
The STXD12RHULMM1AS is ideal for kitchen ventilation, fume and smoke removal, laboratory fume hood exhaust, and chemical process exhaust.
Product Information
Standard Information
-
Brand: SOLER & PALAU
-
Manufacturer Part Number: STXD12RHULMM1AS
-
Country of Origin: United States
Technical Specifications
-
Category: HVAC and Refrigeration -- Roof Ventilators
-
Brand: Soler & Palau
-
Manufacturer: SOLER & PALAU
-
MPN: STXD12RHULMM1AS
-
UPC: 817418016284
-
Item [Specifications]: Upblast Centrifugal Fan
-
Country of Origin (subject to change) [Specifications]: United States
-
Item #: STXD12RHULMM1AS-115V
-
Blade Diameter: 12"
-
Blade Material: Aluminum
-
CFM: 1284
-
Country of Origin: USA
-
Drive Type: Direct
-
Harmonized System Code: 841459
-
Hertz: 60
-
Horsepower: 0.25
-
Made in the USA: Yes
-
Phase: 1 Phase
-
Speed: Variable Speed
-
Voltage: 110-120V
-
Product Type: Commercial Exhauster
-
Installation: Roof or Sidewall
-
Exhaust Type: Upblast
-
Type of Drive: Direct Drive
-
Wheel Size (in.): 12
-
Max. BHP: 0.15
-
RPMs: 1150
-
Max. Static Pressure WG (in.): 1/2
-
Sones Level: 8.5 @ 1/8 SP
-
CFM @ Zero Static Pressure: 1284
-

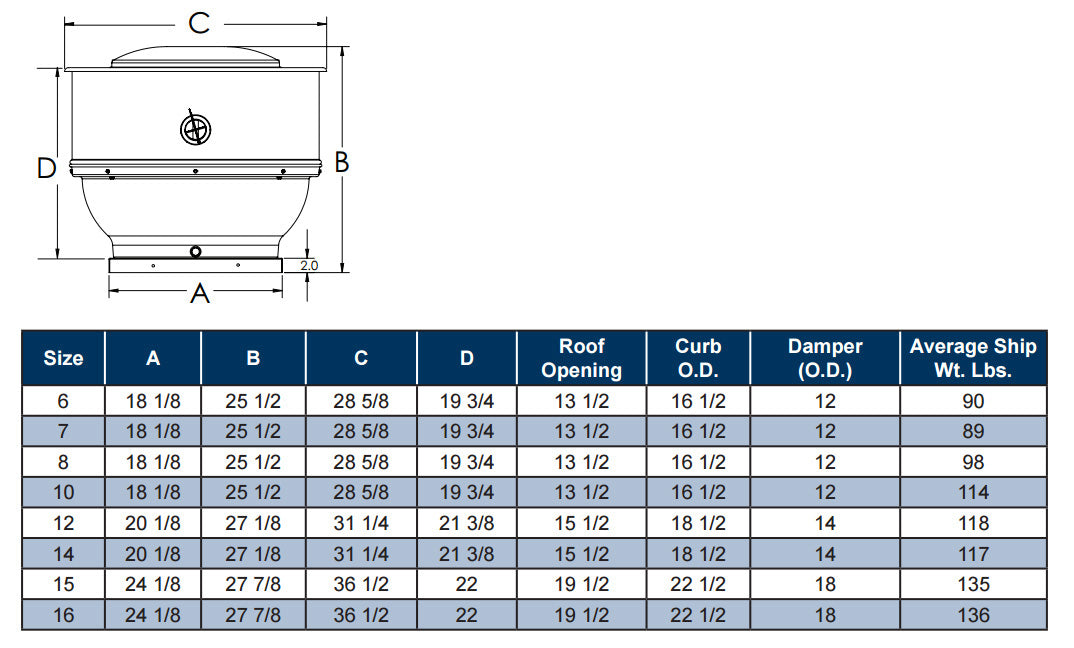

Roof Opening (in.): 15.5
-
Width (in.): 31.25
-
Depth (in.): 31.25
-
Height (in.): 27.125
-
Net Weight (lbs.): 118
-
Certifications: AMCA Air and Sound Licensed, UL 762 Listed
