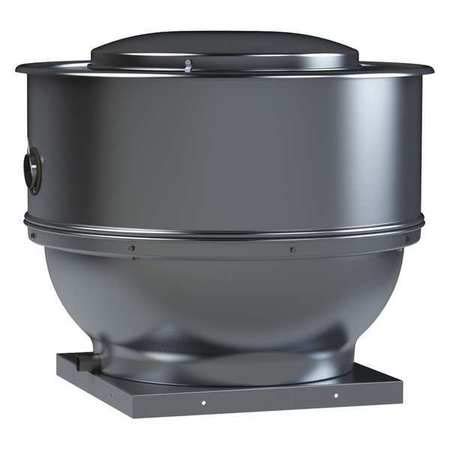

Soler & Palau STXD10RHULPH1AS Upblast Centrifugal Fan 1/3HP 1625rpm

Product Description

The SOLER & PALAU STXD10RHULPH1AS upblast centrifugal fan is designed for high static pressure applications. The aluminum exterior provides an attractive appearance. The backward inclined wheel makes this unit suitable for ducted or non-ducted applications. Its roof or wall mounting permits location near the area to be ventilated, allowing short duct runs and more efficient operation.

• Temperature rating up to 300 degrees F
• Spun aluminum exterior
• Direct drive units have low sound levels and quiet operation

Product Highlights

Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD10RHULPH1AS
• Country of Origin: United States

Technical Specifications

• MPN: STXD10RHULPH1AS
• Blade Diameter: 10"
• Blade Material: Aluminum
• CFM: 1445
• Country of Origin: USA
• Drive Type: Direct Drive
• Hertz: 60
• Horsepower: 1/3
• Phase: 1 Phase
• Speed: Variable Speed
• Voltage: 110-120V
• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Wheel Size (in.): 10
• Max. BHP: 0.28
• RPMs: 1700
• Max. Static Pressure WG (in.): 1
• Sones Level: 13.8 @ 1/8 SP
• CFM @ Zero Static Pressure: 1445

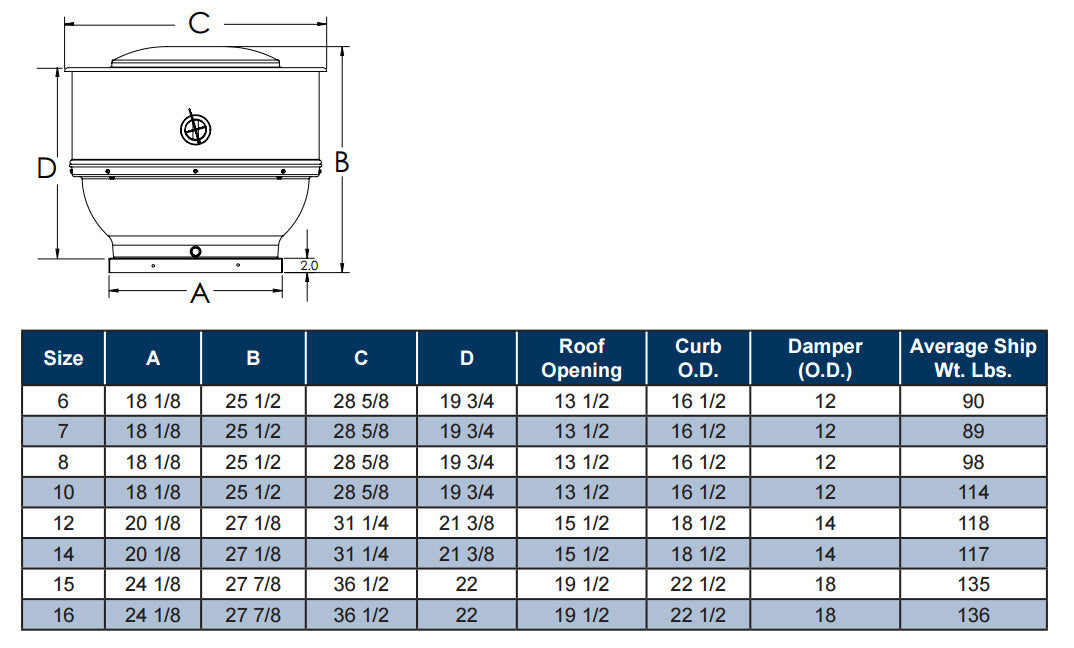

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 25.5
