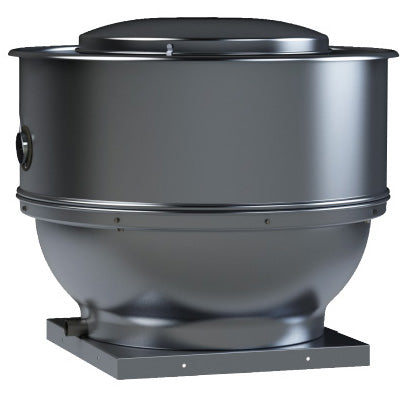

Soler & Palau STXD10RHULMM1AS Upblast Direct Drive Centrifugal Exhauster 10 inches Wheel REPLACEMENT

Product Description

The SOLER & PALAU STXD10RHULMM1AS Upblast Direct Drive Centrifugal Exhauster is UL762 Listed as suitable for restaurant applications. It is a size 10 model, with a 10-inch diameter fan wheel. The fan wheel is constructed for maximum efficiency featuring aluminum construction and a backward-inclined curved centrifugal wheel. It is dynamically balanced for long lasting, smooth operation.

• UL762 Listed as suitable for restaurant applications
• Heavy duty construction and is rated for continuous use
• Can be used in a ducted or non-ducted installation, either vertically through the roof or horizontally through a sidewall
• Will produce 979 CFMs at zero static pressure

Product Highlights

Ideal for kitchen ventilation, fume and smoke removal, fume hood exhaust, and chemical process exhaust. Direct drive is quieter and easier to maintain. Features stainless steel exterior fasteners and a disconnect.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD10RHULMM1AS
• Country of Origin: USA

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Direct Drive
• Wheel Size (in.): 10
• Horsepower (hp): 1/4
• Max. BHP: 0.12
• RPMs: 1150
• Max. Static Pressure WG (in.): 1/2
• Sones Level: 7.7 @ 1/8 SP
• CFM @ Zero Static Pressure: 979

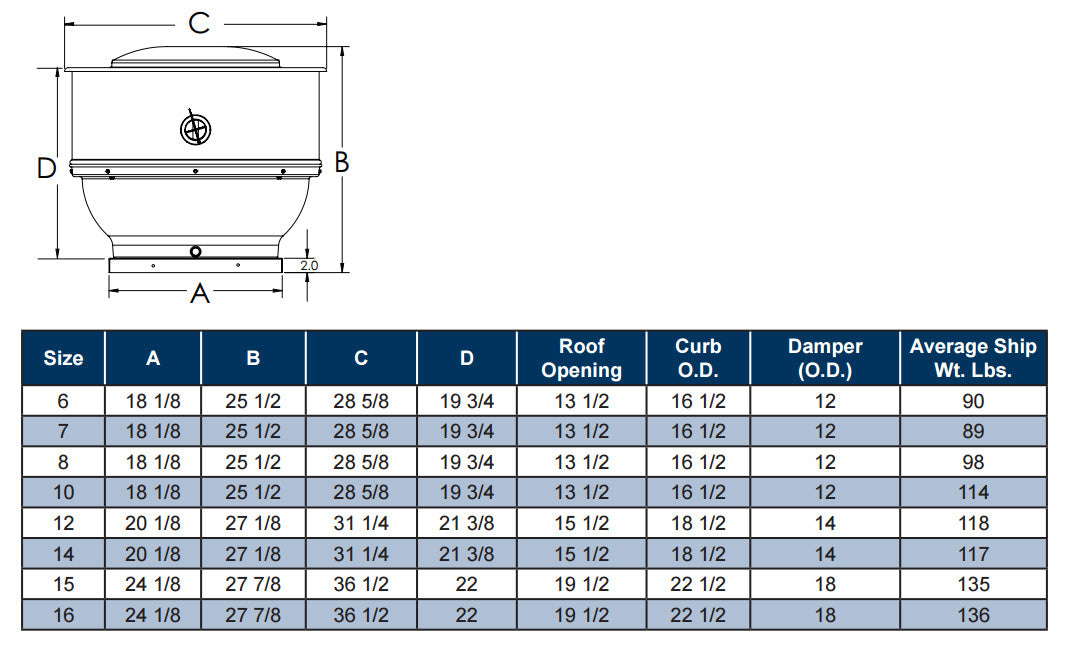

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 25.5
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
• Blade Diameter: 10"
• Blade Material: Aluminum
• CFM: 979
• Country of Origin: USA
• Drive Type: Direct
• Hertz: 60
• Phase: 1 Phase
• Speed: Variable Speed
