Soler & Palau STXD08MH1AS Direct Drive Centrifugal Upblast Roof/Sidewall Exhaust Fan

Product Description

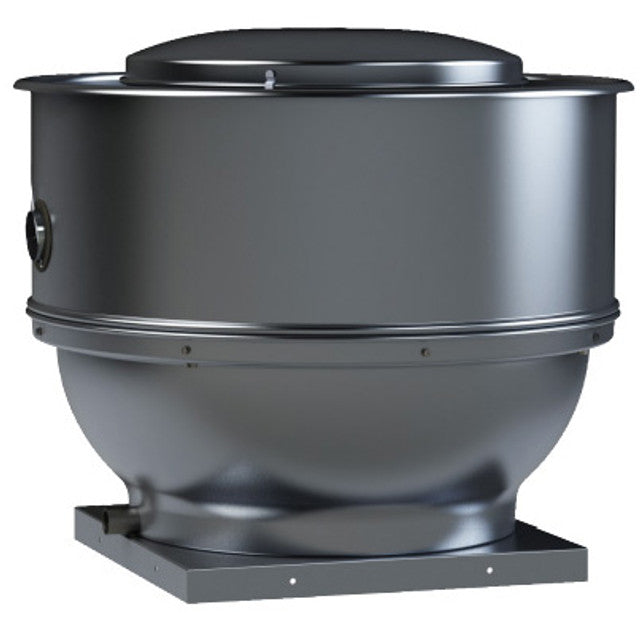

The Soler & Palau STXD08MH1AS is a direct drive centrifugal exhaust fan ideal for mounting on roofs or sidewalls. This fan features a non-overloading backward inclined aluminum wheel for effective air removal. It has a heavy-gauge aluminum housing with stainless steel fasteners to ensure durability. The STXD08MH1AS is engineered for general exhaust applications, especially effective at removing contaminated or high-temperature air.

• Non-overloading aluminum wheel ensures efficiency.
• Suitable for both ducted and non-ducted applications.
• Designed with low maintenance in mind due to the direct drive operation.

Product Highlights

The fan operates quietly while ensuring consistent airflow with minimal upkeep.

Product Information

Standard Information

• Brand: Soler & Palau
• MPN: STXD08MH1AS

Technical Specifications

• Mounting Type: Roof or Sidewall
• Application: General Exhaust
• Wheel Diameter: 8 inches
• Drive Type: Direct Drive
• Horsepower: 1/4 HP
• Maximum BHP: 0.14
• RPM: 1750
• Voltage: 110-120V
• Phase: 1 Phase
• Hertz: 60 Hz
• CFM at 0 Static Pressure: 935
• Sones Level: 10.9 @ 1/8 SP
• Housing Material: Aluminum
• Wheel Material: Aluminum
• Exterior Fasteners: Stainless steel
• Product Dimensions: 29 x 29 x 28 inches
• Product Weight: 82 lbs
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Country of Origin: USA
