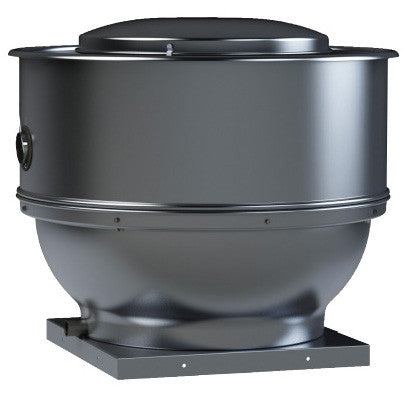

Soler & Palau STXD07JH1AS Upblast Centrifugal Roof Exhaust 7 inch 437 CFM Direct Drive

Product Description

The SOLER & PALAU STXD07JH1AS direct drive fans are designed to exhaust air in high static pressure applications. The aluminum exterior provides an attractive appearance. The backward inclined wheel makes this unit suitable for either ducted or non-ducted applications. Its roof or wall mounting permits location near the area to be ventilated.

• Temperature rating up to 300 degrees F
• Spun aluminum exterior
• Direct drive units have low sound levels and quiet operation

Product Highlights

Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD07JH1AS
• Country of Origin: USA

Technical Specifications

• Blade Diameter: 7"
• CFM: 437
• Drive Type: Direct
• Hertz: 60
• Horsepower: 0.1
• Phase: 1 Phase
• Voltage: 120 / 208 / 240
• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Wheel Size (in.): 7
• Max. BHP: 0.04
• RPMs: 1650
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 7.1 @ 1/8 SP
• CFM @ Zero Static Pressure: 437

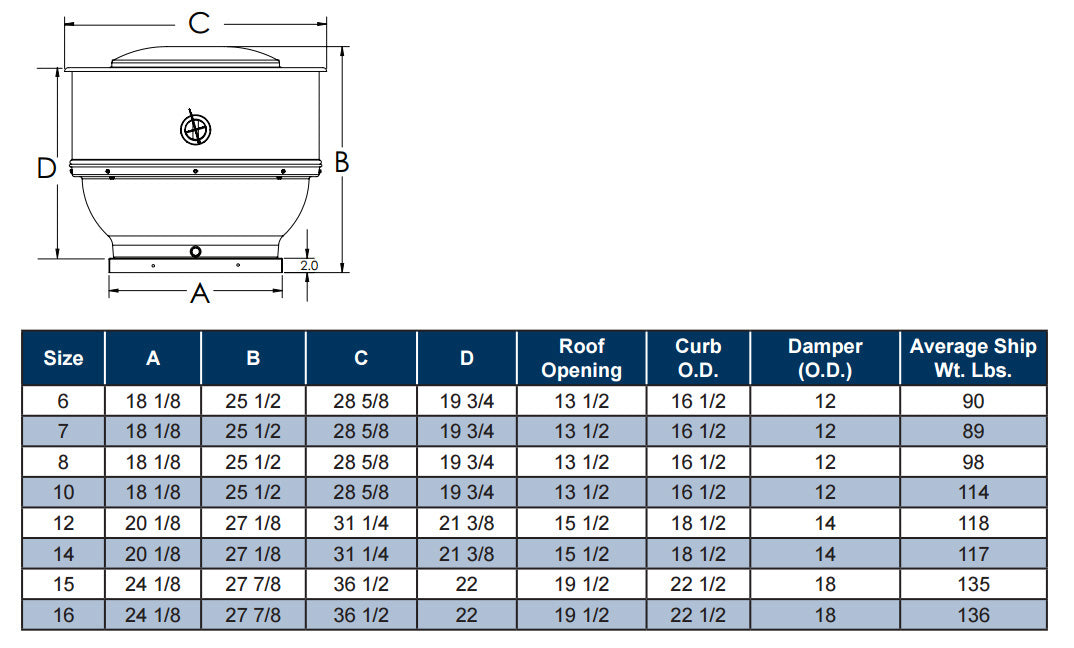

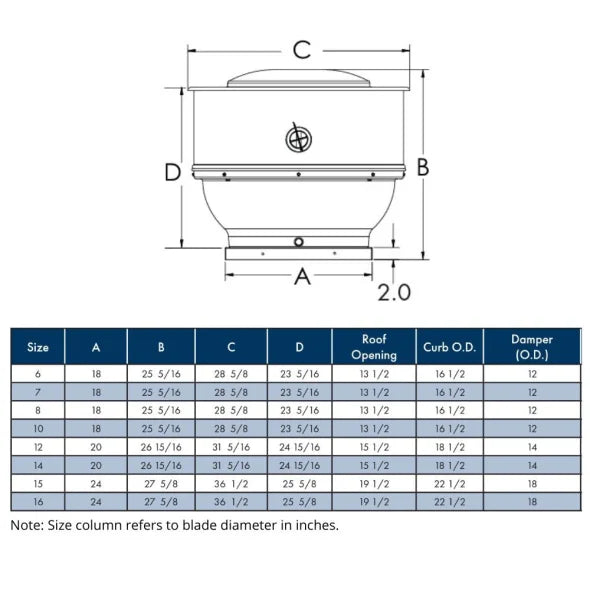

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 25.5
• Net Weight (lbs.): 89
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
