Soler & Palau STXD06CJH1AS Upblast Direct Drive Centrifugal Exhauster 1/10HP

Product Description

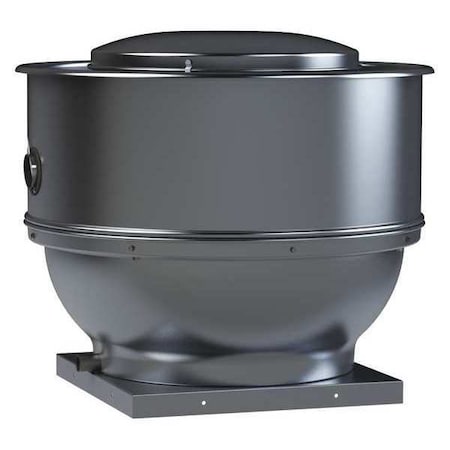

The Soler & Palau STXD06CJH1AS is an upblast direct drive centrifugal exhauster. Features an attractive spun aluminum exterior and a curved non-overloading backward inclined wheel for efficiency at higher static pressures. Designed for roof or sidewall mounting, allowing short duct runs and more efficient operation. Direct drive units have low sound levels and quiet operation.

• Attractive spun aluminum exterior.
• Direct drive units have low sound levels and quiet operation.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for removing dirty, contaminated, and/or high-temperature air in ducted or non-ducted installations. UL705 Listed for general applications.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD06CJH1AS
• Country of Origin: United States

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Direct Drive
• Wheel Size (in.): 6
• Horsepower (hp): 1/10
• Max. BHP: 0.05
• RPMs: 1650
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 7.1 @ 1/8 SP
• CFM @ Zero Static Pressure: 225

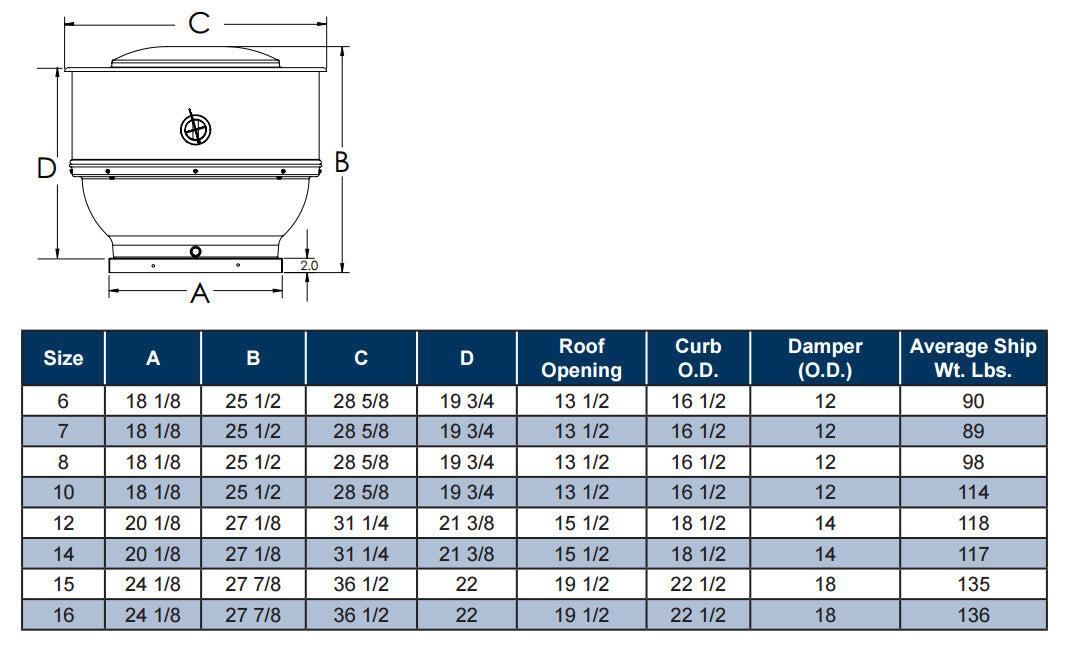

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 25.5
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Voltage: 110-120V
• Country of Origin: United States
