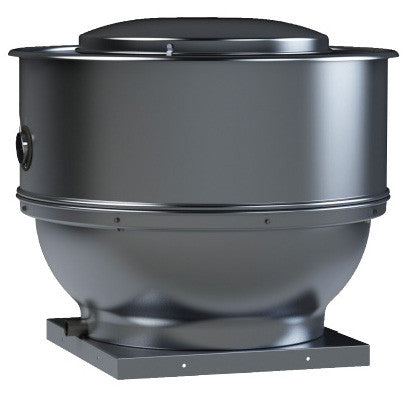

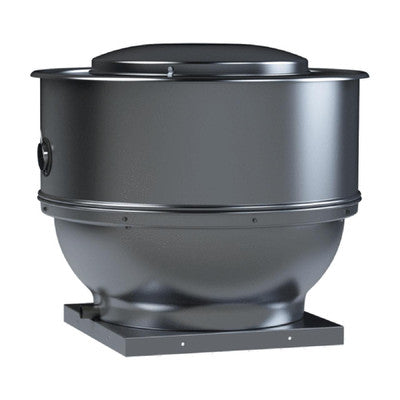

Soler & Palau STXB16RHULSH1S Upblast Centrifugal Roof Exhaust 3975 CFM 16 inch

Product Description

The SOLER & PALAU STXB16RHULSH1S belt drive fan is designed to exhaust air in high static pressure applications. The aluminum exterior provides an attractive appearance. The non-overloading backward inclined wheel makes this unit suitable for ducted or non-ducted applications. It is suited for the removal of dirty contaminated and/or high temperature air from processes and buildings.

• Temperature rating up to 300 degrees F
• Spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

The SOLER & PALAU STXB16RHULSH1S is ideal for restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB16RHULSH1S
• Country of Origin: USA

Technical Specifications

• Item #: STXB16RHULSH1S
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 3975
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Horsepower: 1
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 3684
• Speed: 1 Speed
• Voltage: 120
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 16
• Max. BHP: 0.99
• RPMs: 1400
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 21.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 3975

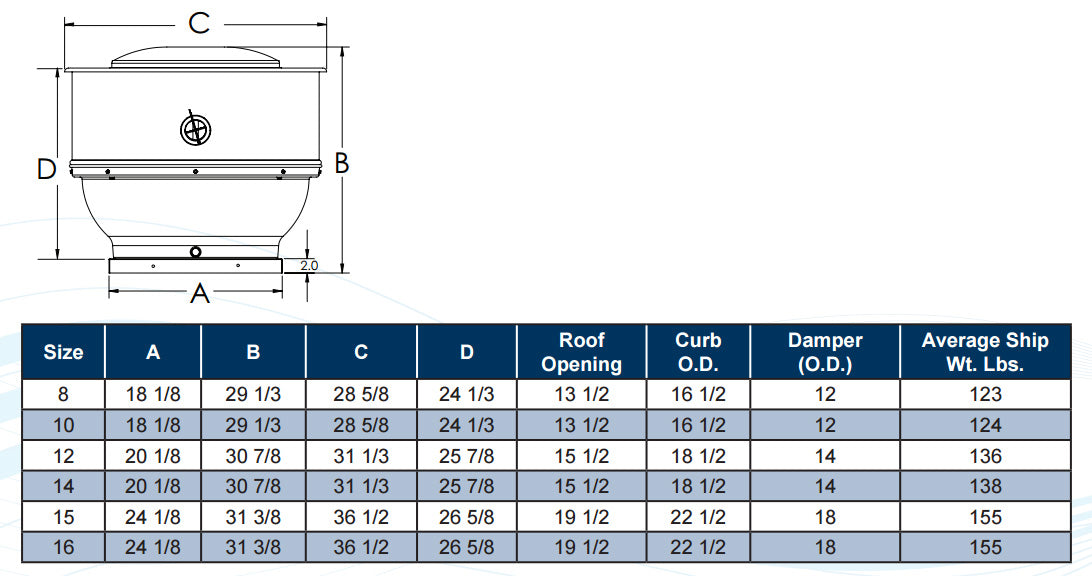

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
