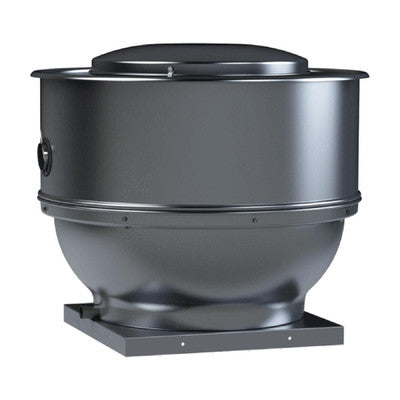

Soler & Palau STXB16RHULRH1S Upblast Belt Direct Drive Centrifugal Restaurant Roof Exhaust Fan 3/4HP

Product Description

The Soler And Palau STXB16RHULRH1S is an upblast belt direct drive centrifugal exhaust fan. It features an attractive spun aluminum exterior and belt drives that permit easy performance adjustments. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. It offers roof or sidewall mounting options.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust, and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB16RHULRH1S
• Country of Origin: USA

Technical Specifications

• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 3691
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Horsepower: 0.75
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 3691
• Speed: 1 Speed
• Voltage: 120
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 16
• Max. BHP: 0.79
• RPMs: 1300
• Max. Static Pressure WG (in.): 1-1/4
• Sones Level: 17.8 @ 1/4 SP
• CFM @ Zero Static Pressure: 3691

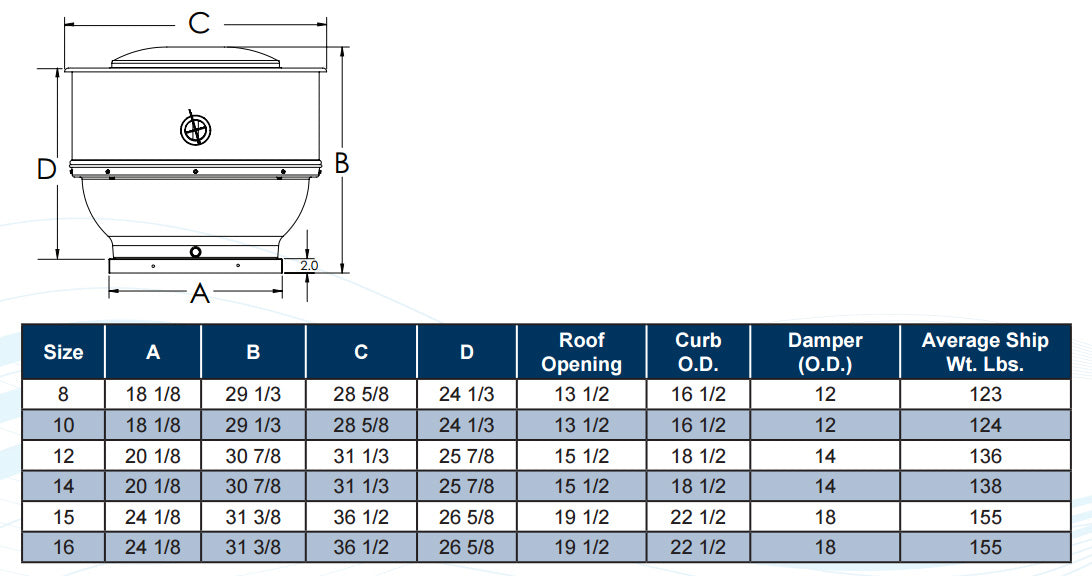

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
