Soler & Palau STXB16RHULQH1S Upblast Exhaust Fan 1/2HP

Product Description

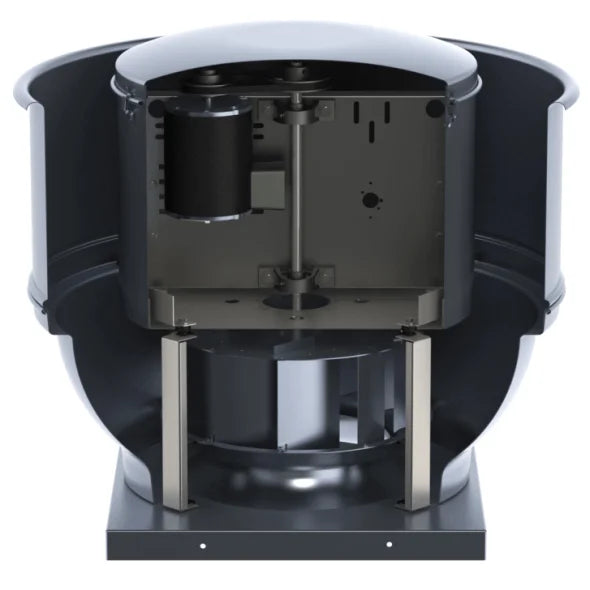

The SOLER & PALAU STXB16RHULQH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. The size 16 model features heavy-duty construction and is rated for continuous use. The fan wheel is aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. Best suited for removal of dirty, contaminated, and/or high-temperature air.

• Temperature rating up to 300 degrees F
• Spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust, and chemical process exhaust. Can be installed vertically through the roof or horizontally through a sidewall.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB16RHULQH1S
• Country of Origin: United States

Technical Specifications

• Item #: STXB16RHULQH1S
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 3265
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.5
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 1150
• Speed: 1 Speed
• Voltage: 110-120V
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 16
• Max. BHP: 0.55
• Max. Static Pressure WG (in.): 1
• Sones Level: 14.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 3265

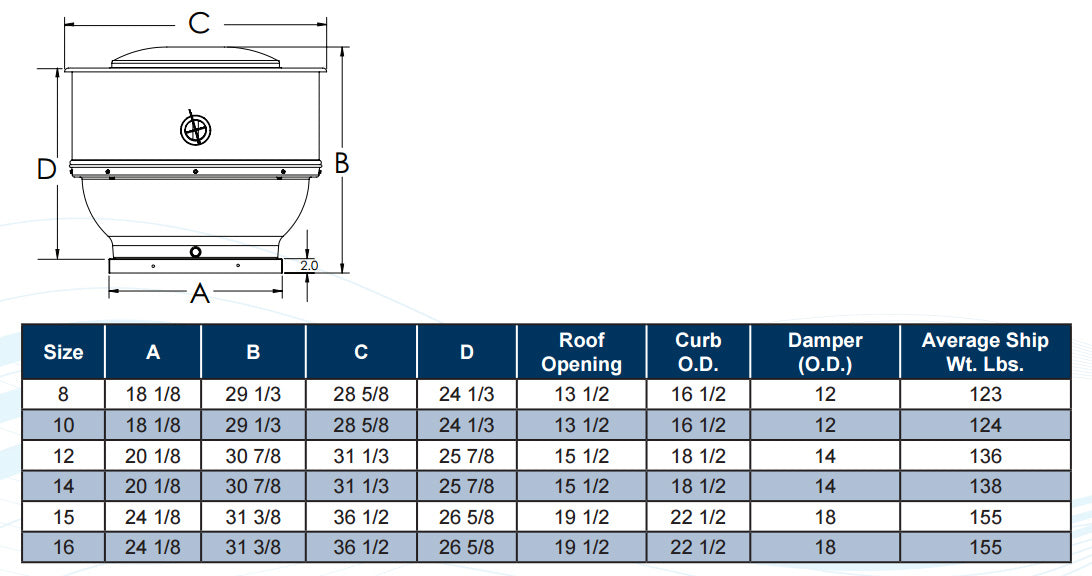

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
