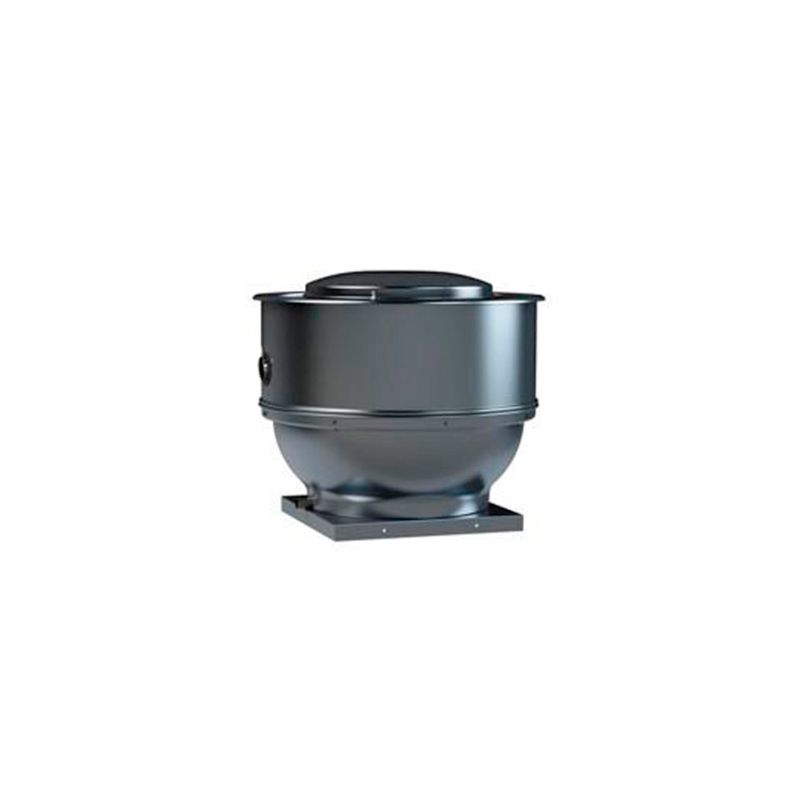

Soler & Palau STXB16RHULPH1S Upblast Exhaust Fan 1/3Hp 1Ph 1000Rpm

Product Description

The SOLER & PALAU STXB16RHULPH1S upblast belt drive centrifugal roof/sidewall exhaust fan is designed to exhaust air up to 2839 CFM in high static pressure applications. Its belt drive results in lower operating RPM and sound levels. The non-overloading backward inclined wheel makes this unit suitable for ducted or non-ducted applications.

• Max CFM 2839
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for removing dirty, contaminated, and/or high-temperature air from processes and buildings. UL762 certified for grease applications.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB16RHULPH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/3HP,1Ph,1000rpm
• Country of Origin (subject to change) [Specifications]: United States
• SKU: STXB16RHULPH1S
• Brand/Manufacturer: S&P
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 2839
• Sone: 10.9
• Wheel Size: 16"
• Motor RPM: 1000
• Horsepower: 0.33
• Phase: Single Phase
• Curb Cap Size: 24 x 24"
• Certification: HVI
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 2839
• Country of Origin: USA
• Harmonized System Code: 841459
• Hertz: 60
• Made in the USA: Yes
• RPM: 2839
• Speed: 1 Speed
• Voltage: 120
• MPN: STXB16RHULPH1S
• Brand: SOLER & PALAU
• Condition: New
• Item: Upblast Exhaust Fan,1/3HP,1Ph,1000rpm
