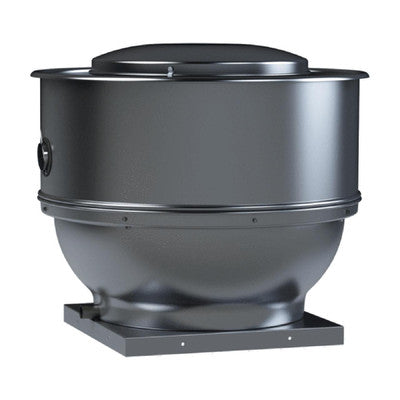

Soler & Palau STXB15RHULSH1S Upblast Belt Direct Drive Centrifugal Restaurant Exhaust Fan 1 HP

Product Description

The Soler & Palau STXB15RHULSH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. It features heavy-duty construction and is rated for continuous use. The fan wheel is constructed of aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. This exhauster is suited for removing dirty, contaminated, and high-temperature air.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB15RHULSH1S
• Country of Origin: USA

Technical Specifications

• Blade Diameter: 15"
• CFM @ Zero Static Pressure: 3684
• Horsepower: 1
• Phase: 1 Phase
• Voltage: Choice Dependent
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 15
• Max. BHP: 1.05
• RPMs: 1600
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 21.0 @ 1/4 SP

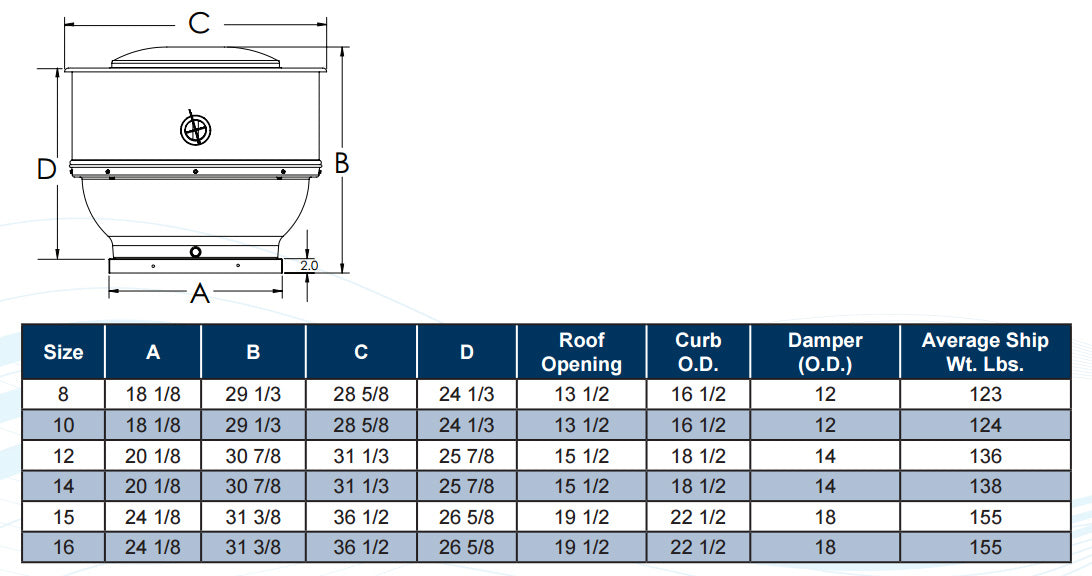

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Blade Material: Aluminum
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Made in the USA: Yes
• Speed: 1 Speed
• Product Weight: 159 lbs
