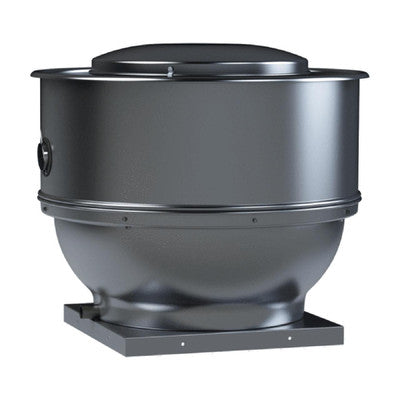

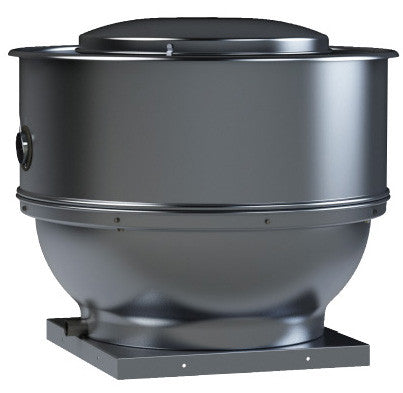

Soler & Palau STXB15RHULRH1S Upblast Belt Drive Centrifugal Restaurant Exhauster - 15 inches Wheel

Product Description

The SOLER & PALAU STXB15RHULRH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. This size 15 model features heavy-duty construction rated for continuous use. The fan wheel is aluminum and backward-inclined for maximum efficiency and is dynamically balanced for smooth operation. Best suited for removal of dirty, contaminated, and/or high-temperature air.

• Upblast belt driven centrifugal exhauster.
• Listed for both general applications and suitable for restaurant applications.
• Features heavy duty construction and is rated for continuous use.

Product Highlights

The SOLER & PALAU STXB15RHULRH1S can be used in ducted or non-ducted installations, vertically through the roof or horizontally through a sidewall. The motor is a single speed open drip-proof motor with a easily removable cover for maintenance.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB15RHULRH1S
• Country of Origin: USA

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 15
• Horsepower (hp): 3/4
• Max. BHP: 0.78
• RPMs: 1450
• Max. Static Pressure WG (in.): 1-1/4
• Sones Level: 17.8 @ 1/4 SP
• CFM @ Zero Static Pressure: 3338
• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 120
• Blade Diameter: 15"
• Blade Material: Aluminum
• CFM: 3338
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Horsepower: 0.75
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 3338
• Speed: 1 Speed
