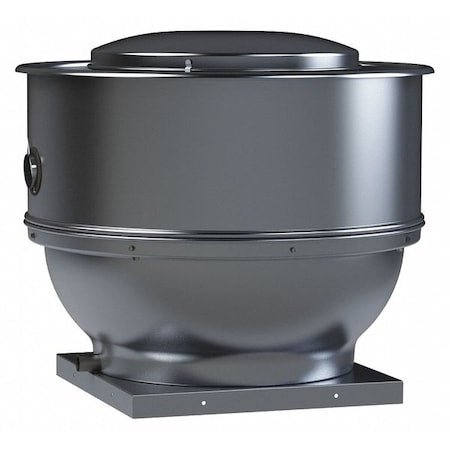

Soler & Palau STXB15RHULPH1S Upblast Exhaust Fan 1/3HP

Product Description

The SOLER & PALAU STXB15RHULPH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. It features heavy-duty construction and is rated for continuous use. The fan wheel is aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. Best suited for removal of dirty, contaminated, and/or high-temperature air.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

This exhaust fan can be used in ducted or non-ducted installations, vertically through the roof or horizontally through a sidewall. The motor is a single speed open drip-proof motor. The housing includes stainless steel exterior fasteners and a disconnect.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB15RHULPH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/3HP,1Ph,1100rpm
• Country of Origin (subject to change) [Specifications]: United States
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 15
• Horsepower (hp): 1/3
• Max. BHP: 0.34
• RPMs: 1100
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 10.2 @ 1/4 SP
• CFM @ Zero Static Pressure: 2533

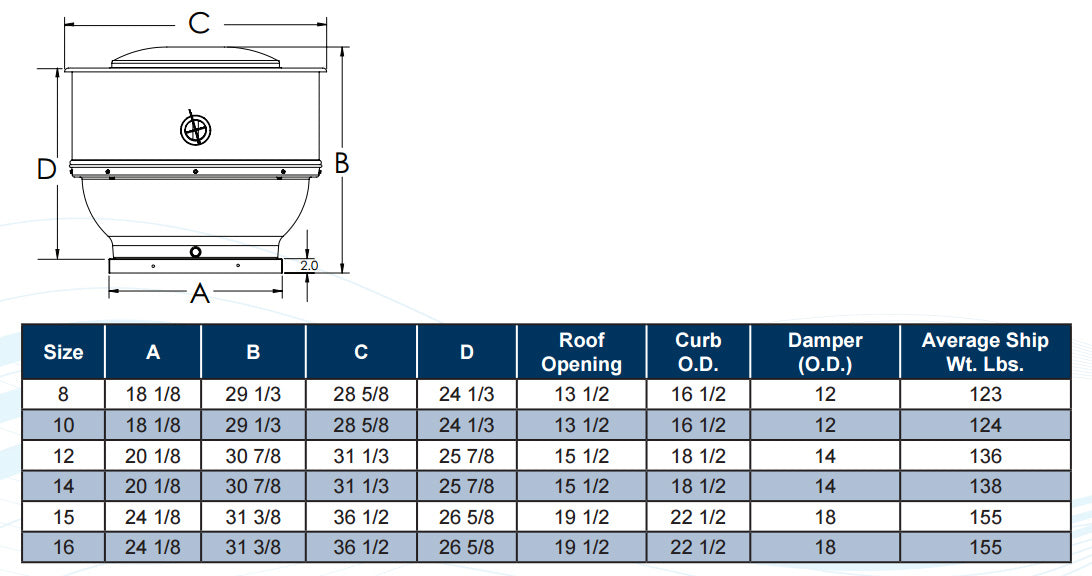

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
