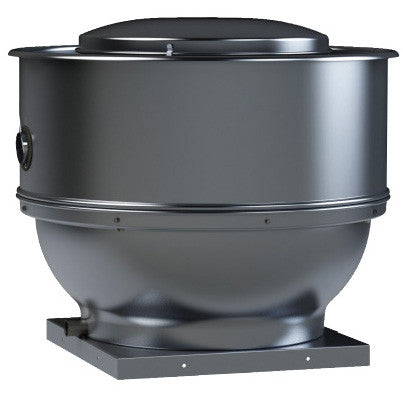

Soler & Palau STXB15RHULMH1S Upblast Belt Drive Centrifugal Restaurant Exhauster - 15 inches Wheel, 115 Volt

Product Description

The SOLER & PALAU STXB15RHULMH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. This size 15 model features heavy-duty construction and is rated for continuous use. The fan wheel is constructed of aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. Suited for removal of dirty, contaminated, and high-temperature air.

• Upblast belt driven centrifugal exhauster
• Listed for general and restaurant applications
• Heavy duty construction

Product Highlights

Ideal for restaurant hood and kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust, and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB15RHULMH1S

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 15
• Horsepower (hp): 1/4
• Max. BHP: 0.26
• RPMs: 1000
• Max. Static Pressure WG (in.): 1/2
• Sones Level: 8.6 @ 1/4 SP
• CFM @ Zero Static Pressure: 2302

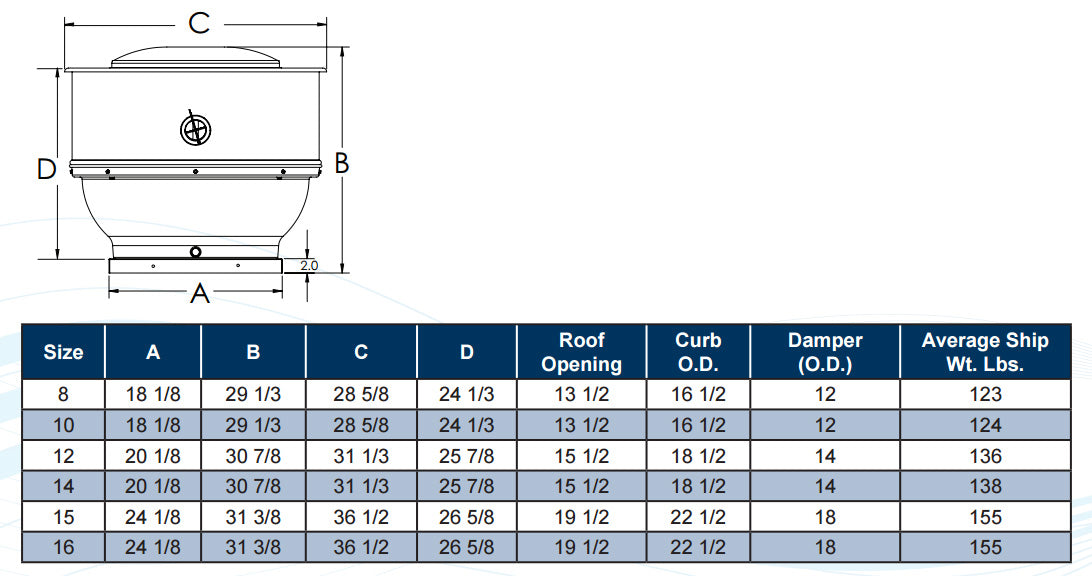

• Roof Opening (in.): 19.5
• Width (in.): 36.5
• Depth (in.): 36.5
• Height (in.): 31.375
• Net Weight (lbs.): 155
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
