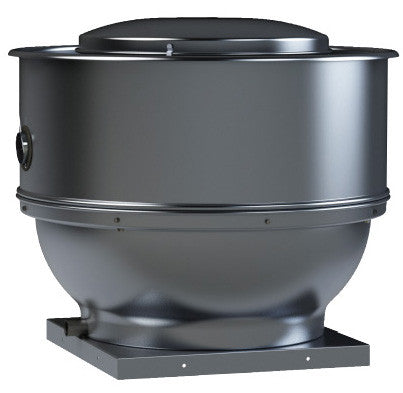

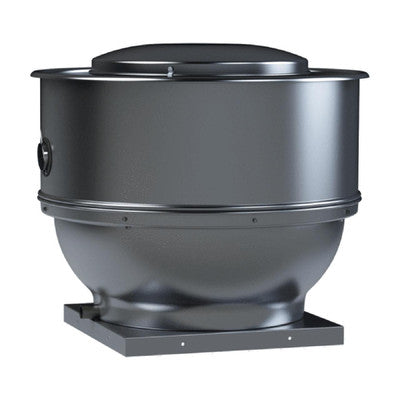

Soler & Palau STXB14RHULSH1S Upblast Belt Direct Drive Centrifugal Restaurant Exhaust Fan 1 HP

Product Description

The Soler And Palau STXB14RHULSH1S is an upblast belt direct drive centrifugal exhaust fan. It features an attractive spun aluminum exterior and belt drives that permit easy performance adjustments. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. Roof or sidewall mounting options are available.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

This exhaust fan is ideal for restaurant hood and similar kitchen exhaust ventilation, fume and smoke removal as well as laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB14RHULSH1S

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 14
• Horsepower (hp): 1
• Max. BHP: 1.03
• RPMs: 1700
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 22.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 3435

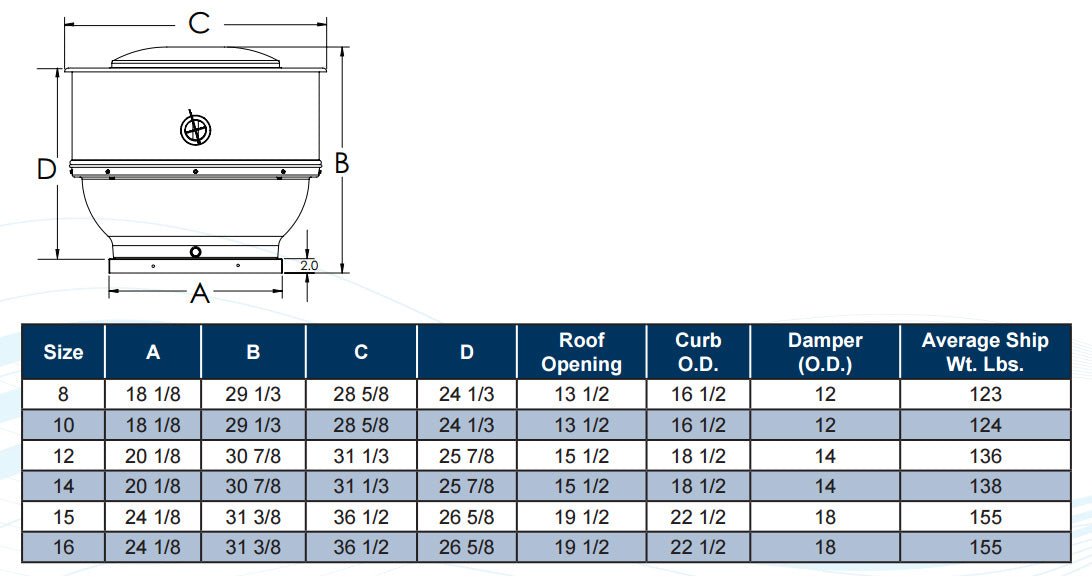

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Net Weight (lbs.): 138
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: Choice Dependent
• Brand: SOLER & PALAU
• MPN: STXB14RHULSH1S
• Condition: New
