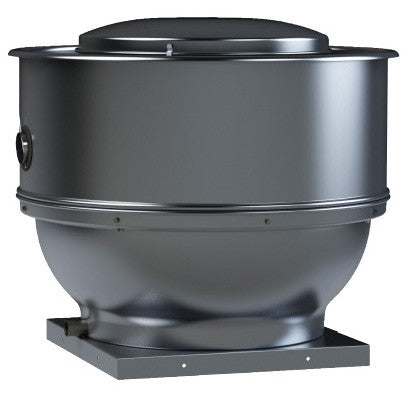

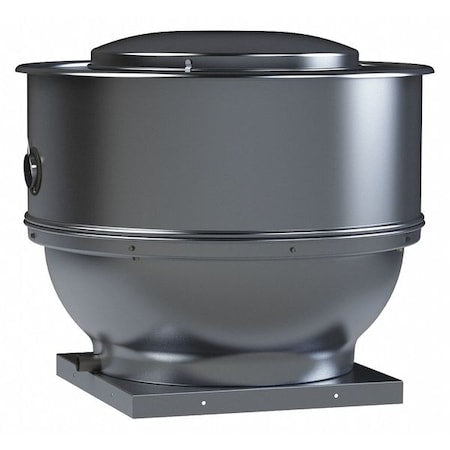

Soler & Palau STXB14RHULQH1S Upblast Exhaust Fan 1/2HP 1350rpm

Product Description

The SOLER & PALAU STXB14RHULQH1S is an upblast belt driven centrifugal exhauster listed for general and restaurant applications. This size 14 model features heavy-duty construction and is rated for continuous use. The fan wheel is aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. Best suited for removal of contaminated or high-temperature air.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hood and kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust, and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB14RHULQH1S
• Country of Origin: United States

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 14
• Horsepower (hp): 1/2
• Max. BHP: 0.52
• RPMs: 1350
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 15.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 2728

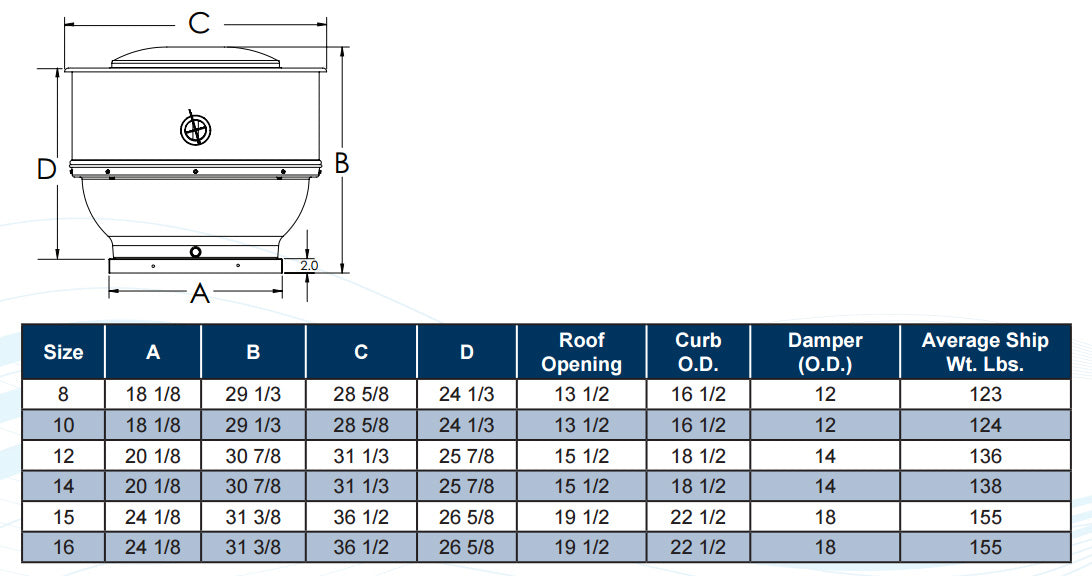

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
