Soler & Palau STXB14RHULPH1S Upblast Exhaust Fan 1/3HP

Product Description

The SOLER & PALAU STXB14RHULPH1S is an upblast belt driven centrifugal exhaust fan listed for general and restaurant applications. Features a dynamically balanced aluminum fan wheel with backward-inclined curve for maximum efficiency. Designed for the removal of dirty, contaminated, and high-temperature air in ducted or non-ducted installations. Best suited for kitchen exhaust ventilation, fume and smoke removal, and chemical process exhaust.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hoods, kitchen exhaust, fume and smoke removal, and laboratory fume hood exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB14RHULPH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/3HP,1Ph,1200rpm
• Country of Origin (subject to change) [Specifications]: United States
• Item #: STXB14RHULPH1S
• Blade Diameter: 14"
• Blade Material: Aluminum
• CFM: 2425
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 1/3
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 1200
• Speed: 1 Speed
• Voltage: 110-120V
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 14
• Max. BHP: 0.36
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 11.9 @ 1/4 SP
• CFM @ Zero Static Pressure: 2425

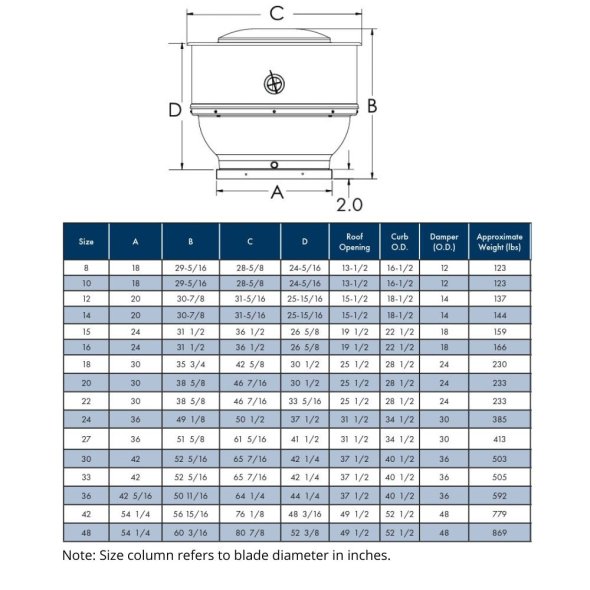

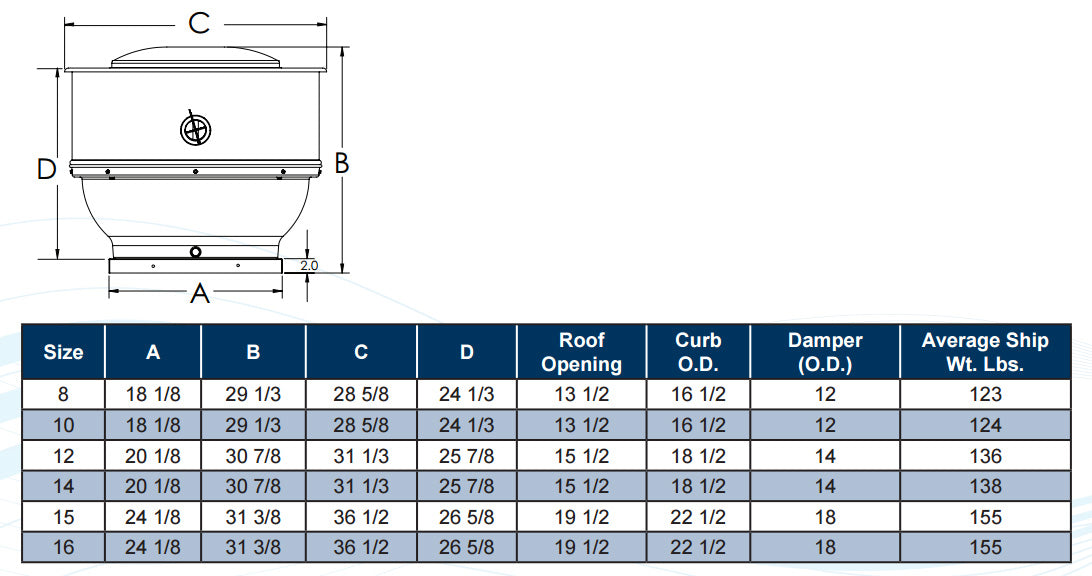

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Net Weight (lbs.): 138
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
