Soler & Palau STXB14RHULMH1S Upblast Exhaust Fan 1/4HP 1Ph 1050rpm

Product Description

The SOLER & PALAU STXB14RHULMH1S is an upblast, centrifugal roof-mounted exhaust fan with a belt drive motor. This STXB belt drive fan is designed to exhaust air in high static pressure applications up to 3". It is UL762 certified for grease applications. The aluminum exterior provides an attractive appearance.

• Temperature rating up to 300 degrees F
• Belt drives permit easy performance adjustments when needed
• Non-overloading backward curved wheel for efficiency at higher static pressures

Product Highlights

This exhaust fan is ideally suited for the removal of dirty contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB14RHULMH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/4HP,1Ph,1050rpm
• Country of Origin (subject to change) [Specifications]: United States
• Blade Diameter: 14"
• Blade Material: Aluminum
• CFM: 2122
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 2122
• Speed: 1 Speed
• Voltage: 110-120V
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 14
• Max. BHP: 0.24
• RPMs: 1050
• Max. Static Pressure WG (in.): 1/2
• Sones Level: 9.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 2122

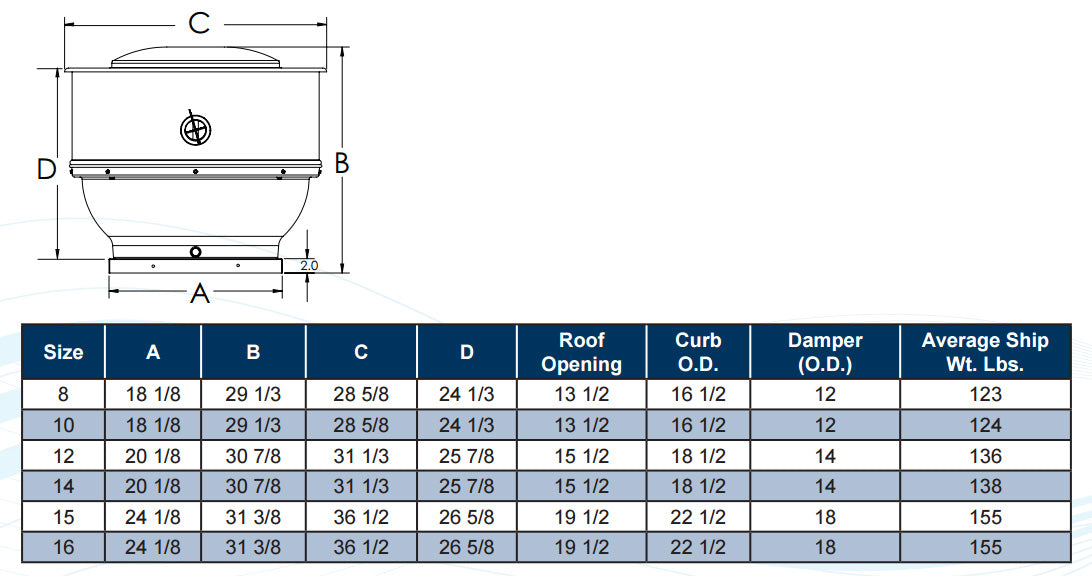

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Net Weight (lbs.): 138
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• UPC: 817418015829
