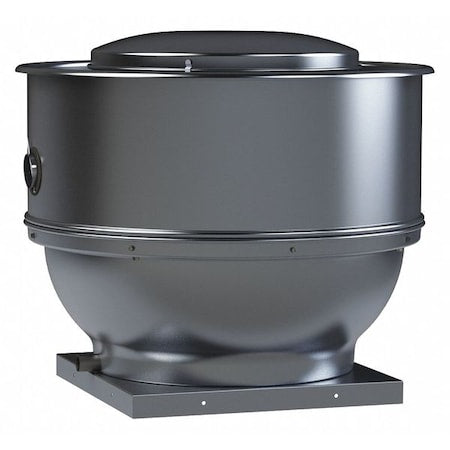

Soler & Palau STXB12RHULPH1S Upblast Exhaust Fan 1/3HP

Product Description

The SOLER & PALAU STXB12RHULPH1S is an upblast belt driven centrifugal exhauster, suitable for both general and restaurant applications. It features heavy-duty construction and is rated for continuous use. The fan wheel is aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. It is designed for removal of dirty, contaminated, and high-temperature air.

• Suitable for restaurant applications and general use.
• Features a dynamically balanced aluminum fan wheel for long-lasting, smooth operation.
• Can be installed vertically through the roof or horizontally through a sidewall.

Product Highlights

This upblast exhaust fan is ideal for restaurant hood ventilation, fume and smoke removal, and laboratory fume hood exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB12RHULPH1S
• Country of Origin: United States

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 12
• Horsepower (hp): 1/3
• Max. BHP: 0.35
• RPMs: 1600
• Max. Static Pressure WG (in.): 1
• Sones Level: 13.8 @ 1/4 SP
• CFM @ Zero Static Pressure: 1768

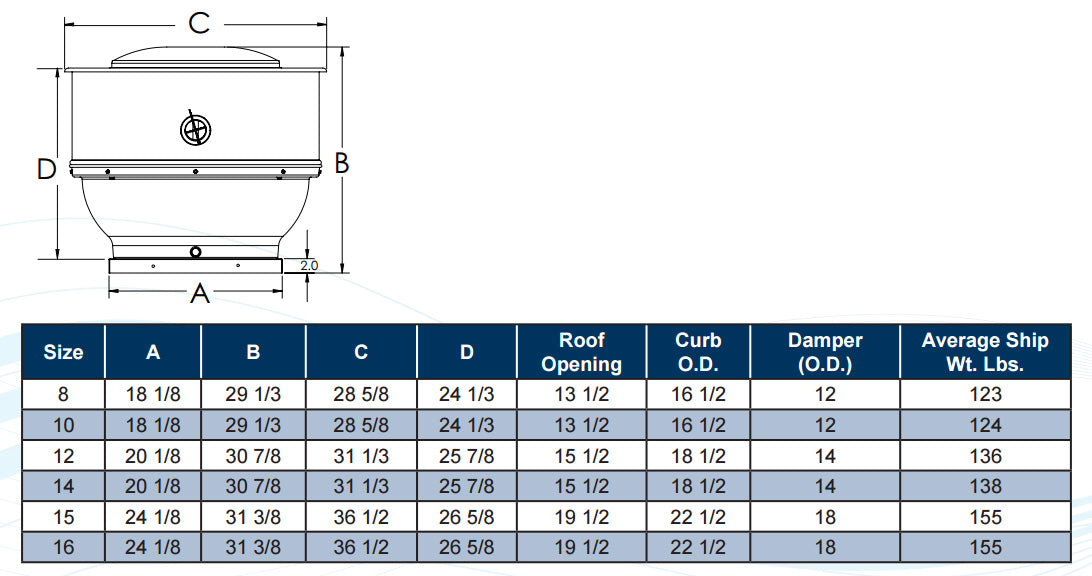

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Net Weight (lbs.): 136
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
