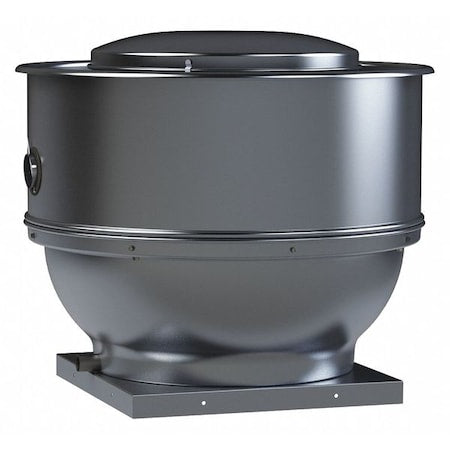

Soler & Palau stxb10rhulph1s upblast exhaust fan 1/3hp 1800rpm

Product Description

The SOLER & PALAU STXB10RHULPH1S is an upblast belt driven centrifugal exhaust fan listed for general and restaurant applications. Features heavy-duty construction and is rated for continuous use. The fan wheel is constructed of aluminum with a backward-inclined curved centrifugal design and is dynamically balanced. Suitable for removal of dirty, contaminated and/or high temperature air.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hood and similar kitchen exhaust ventilation, fume and smoke removal as well as laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB10RHULPH1S
• Country of Origin: United States

Technical Specifications

• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 10
• Horsepower (hp): 1/3
• Max. BHP: 0.37
• RPMs: 1800
• Max. Static Pressure WG (in.): 1-1/4
• Sones Level: 15.4 @ 1/4 SP
• CFM @ Zero Static Pressure: 1510

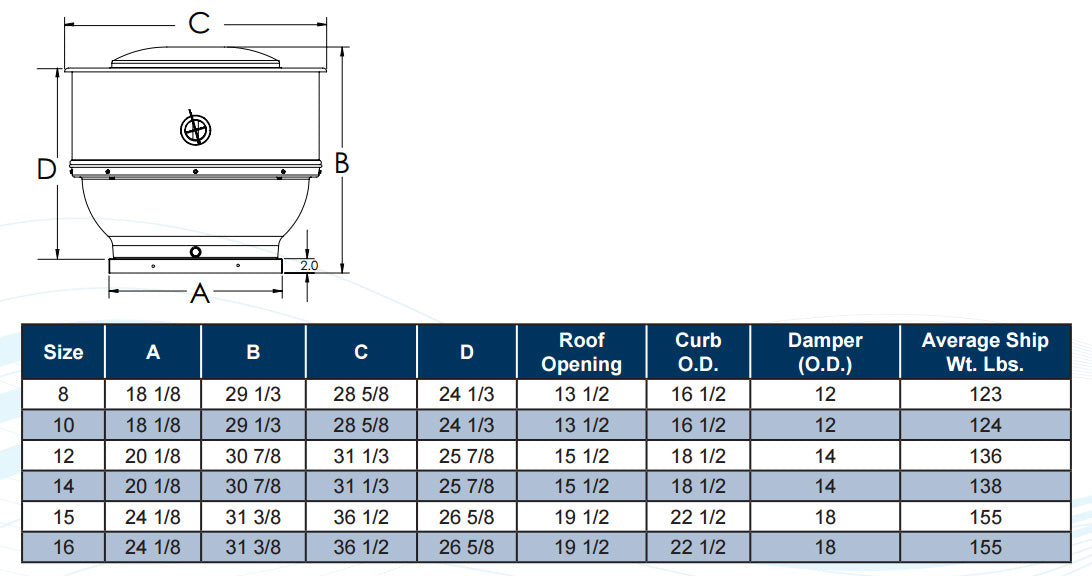

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 29.333
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
• Brand: SOLER & PALAU
• NumberOfItems: 1
• MPN: STXB10RHULPH1S
• UPC: 0817418015782
• Country of Origin: United States
• Item: Upblast Exhaust Fan,1/3HP,1Ph,1800rpm
