Soler & Palau STXB10RHULMH1S Upblast Exhaust Fan 1/4HP 1600rpm

Product Description

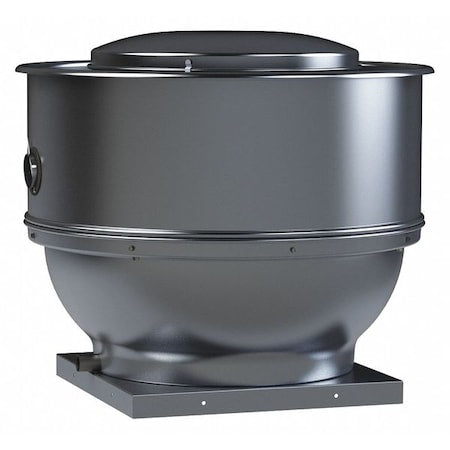

The SOLER & PALAU STXB10RHULMH1S is an upblast, centrifugal roof mounted exhaust fan with a belt drive motor. This size 10 model features heavy-duty construction and is rated for continuous use. It is best suited for removal of dirty, contaminated, and/or high-temperature air. UL762 certified for grease applications.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hood and kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB10RHULMH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/4HP,1Ph,1600rpm
• Country of Origin (subject to change) [Specifications]: United States
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 10
• Horsepower (hp): 1/4
• Max. BHP: 0.26
• RPMs: 1600
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 12.9 @ 1/4 SP
• CFM @ Zero Static Pressure: 1342

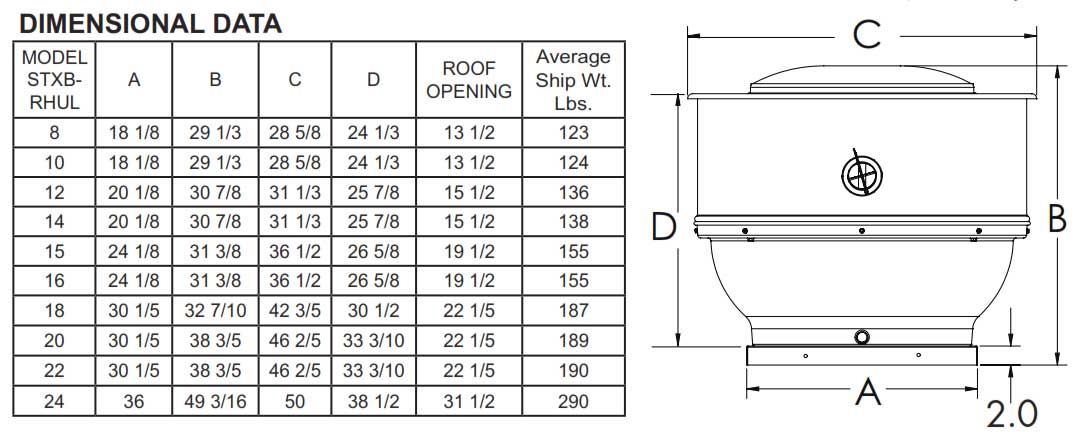

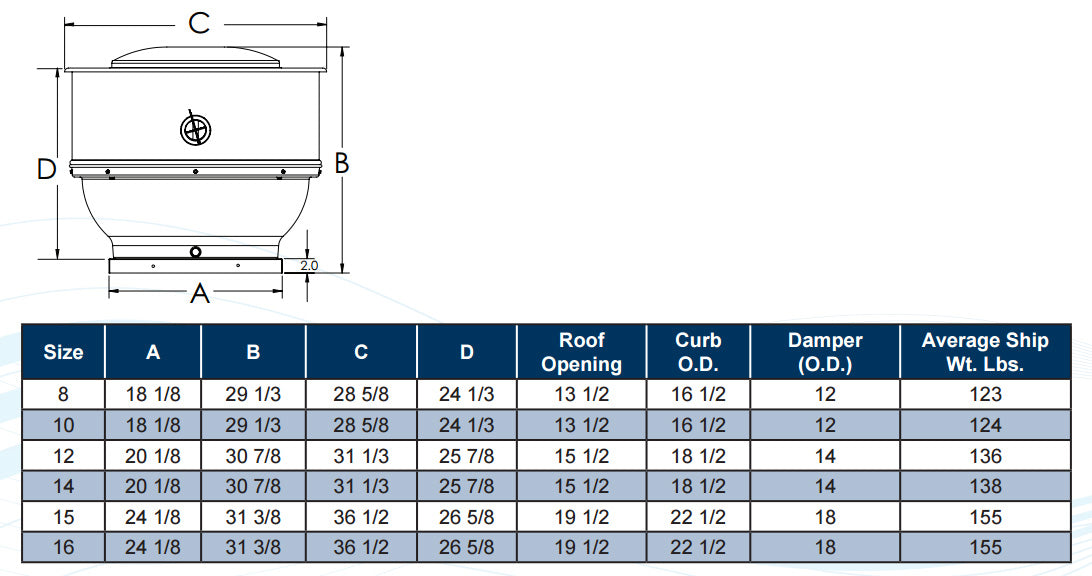

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 29.333
• Net Weight (lbs.): 124
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• Voltage: 110-120V
• Country of Origin: United States
• Application: Restaurant & Gen. Applic.
• CFM Range: 833 - 3,975
• Mount: Wall, Roof
