Soler & Palau STXB08RHULMM1S Upblast Exhaust Fan 1/4HP 1750rpm

Product Description

The SOLER & PALAU STXB08RHULMM1S is an upblast belt driven centrifugal exhaust fan. It features an attractive spun aluminum exterior and a non-overloading backward inclined wheel for efficiency at higher static pressures. It is well suited for restaurant hoods, fume and smoke removal, and laboratory fume hood exhaust.

• Belt drives permit easy performance adjustments when needed.
• Roof or sidewall mounting options.
• AMCA Air and Sound Licensed.

Product Highlights

The STXB08RHULMM1S is designed to exhaust air in high static pressure applications. It is ideally suited for the removal of dirty contaminated and/or high temperature air from processes and buildings.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB08RHULMM1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/4HP,1Ph,1750rpm
• Country of Origin (subject to change) [Specifications]: United States
• Blade Diameter: 8"
• Blade Material: Aluminum
• CFM: 940
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 940
• Speed: 1 Speed
• Voltage: 120
• Item #: STXB08RHULMM1S
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 8
• Max. BHP: 0.19
• RPMs: 1750
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 11.5 @ 1/4 SP
• CFM @ Zero Static Pressure: 940

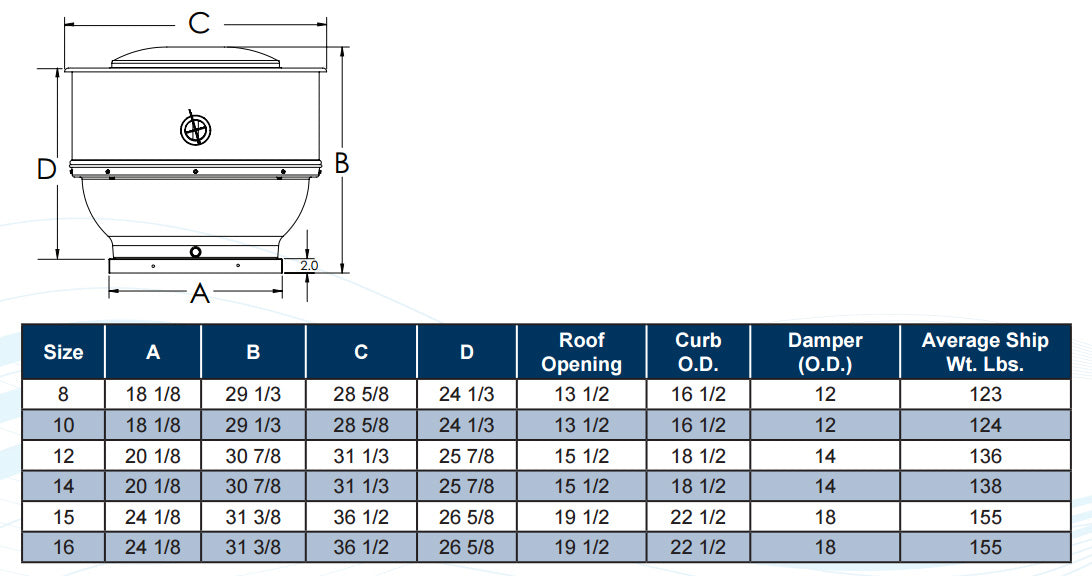

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 29.333
• Net Weight (lbs.): 123
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
• MFR #: STXB08RHULMM1S
• Zoro #: G8728566
• UPC #: 817418015744
• Item: Upblast Exhaust Fan,1/4HP,1Ph,1750rpm
