SOLER & PALAU SQB10RH3S Square Inline Belt Drive Centrifugal Duct Fan 1,669 CFM 208-230/460V 3PH 3/4HP

Brand: SOLER & PALAU
SKU: SQB10RH3S
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$2,192.72
$2,192.72
LTL Delivery

This product weighs 85 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

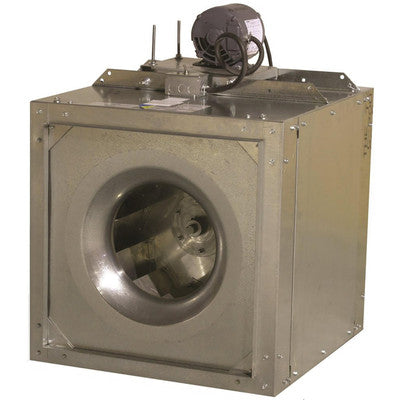

The SOLER & PALAU SQB10RH3S is a square inline belt drive centrifugal duct fan designed for efficient airflow in compact spaces. This model delivers airflow of one thousand six hundred sixty-nine cubic feet per minute (CFM) while maintaining a sound level of twenty-one sones at zero point five inches of static pressure.

  • Belt drive setup allows for easy performance adjustments as needed.
  • Ideal for installations in limited spaces.
  • Non-overloading backward inclined wheel enhances efficiency for higher static pressures.

Product Highlights

This fan is suitable for clean air applications and features a compact design with removable access doors. It can be installed in various orientations for flexibility.

Product Information

Standard Information

  • Product ID: Soler-And-Palau-SQB10RH3S
  • Weight: 85 pounds

Technical Specifications

  • Performance: 1,669 CFM
  • Sound Level: 21.0 sones at 0.5 inches static pressure
  • Voltage: 208-230/460V
  • Phase: 3PH
  • Horsepower: 3/4HP
  • Compliance: AMCA Air and Sound Licensed, cULus 705 Listed
  • Shipping Method: Truck, Curbside, Back of Truck
  • Shipping Origin: Florida - Direct from Soler and Palau
