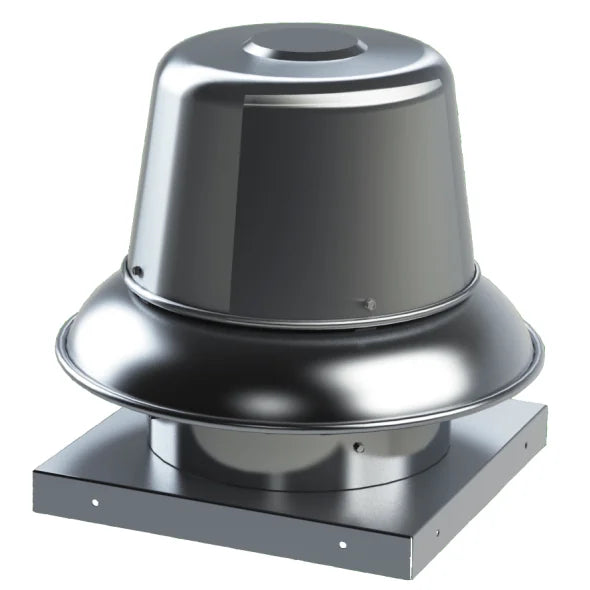

SOLER & PALAU SDBD08JH1AS Centrifugal Roof Exhaust Fan

Product Description

The SOLER & PALAU SDBD08JH1AS is a roof exhaust fan designed for efficient air exhaust in applications with high static pressure. This unit has a spun aluminum exterior and a backward inclined wheel for reliable airflow. The design allows for easy roof mounting, making it ideal for placement near ventilation points, which helps reduce duct length. It is suitable for both ducted and non-ducted setups, commonly used in commercial and institutional buildings.

• Direct drive centrifugal fan.
• Variable speed operation.
• cULus Listed.

Product Highlights

This fan is effective in managing air movement, ensuring proper ventilation for various environments.

Product Information

Standard Information

• Country of Origin: USA
• Warranty: 5 Year

Technical Specifications

• CFM: 862
• Drive Type: Direct
• Blade Diameter: 8 inches
• Voltage: 120
• Phase: 1 Phase
• Horsepower: 0.1
• RPM: 476
• Speed: Variable Speed
• Product Dimensions: 31 x 25 x 25 inches
• Product Weight: 38 lbs
• Harmonized System Code: 841459
