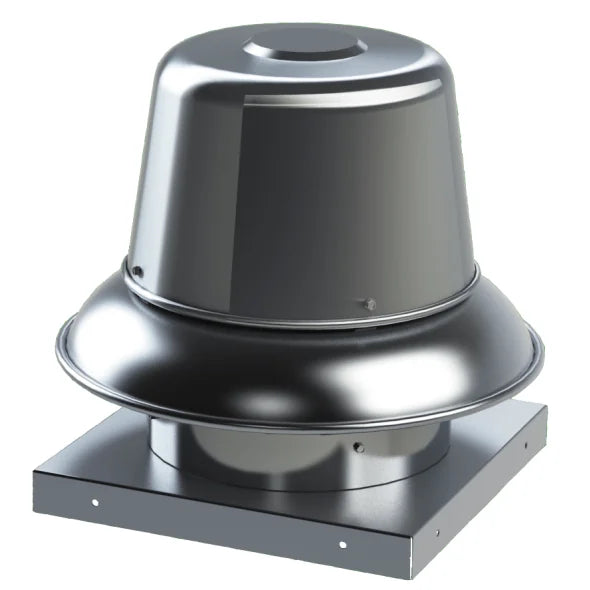

SOLER & PALAU SDBD07JH1AS Soler & Palau SDBD07JH1AS 7-Inch Centrifugal Roof Exhauster

Product Description

The Soler & Palau SDBD07JH1AS is a centrifugal roof exhauster that excels in high static pressure environments. This unit includes a spun aluminum shell and an innovative backward inclined wheel, making it effective for both ducted and non-ducted ventilation setups. Designed for roof mounting, it allows for efficient placement near ventilation areas to minimize duct length. This model is commonly found in institutions such as hospitals, schools, office buildings, and retail spaces.

• Spun aluminum exterior for durability.
• Curved, non-overloading wheel for optimized airflow.
• Suitable for both ducted and non-ducted systems.

Product Highlights

This exhauster provides reliable air movement solutions in various commercial settings.

Product Information

Standard Information

• Brand: Soler & Palau
• Country of Origin: USA

Technical Specifications

• Blade Diameter: 7 inches
• CFM: 476
• Drive Type: Direct
• Horsepower: 0.1
• Phase: 1 Phase
• Speed: Variable Speed
• Input Voltage: 120
• Product Dimensions: 31 inches x 25 inches x 25 inches
• Product Weight: 26 lbs
• RPM: 476
• Amps: 2.7
