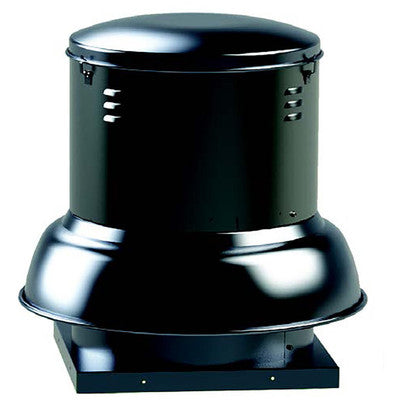

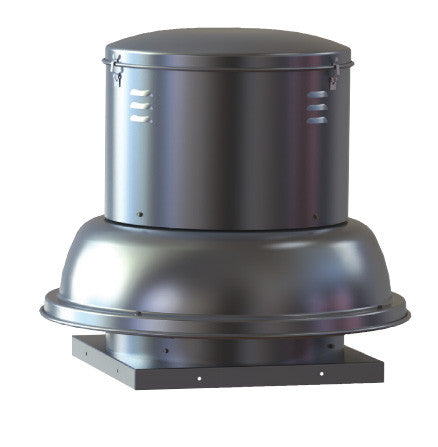

Soler & Palau SDB16SH1S Belt Drive Centrifugal Roof Exhauster 1 hp

Product Description

The Soler & Palau SDB16SH1S is a belt drive centrifugal down blast roof exhauster. It is designed to exhaust air up to 4135 CFM in high static pressure applications. The spun aluminum exterior provides an attractive appearance. Belt drive results in lower operating RPM and sound levels.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster is ideal for commercial, industrial, and institutional environments, offering efficient and quiet ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB16SH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB16SH1S
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 4135
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Horsepower: 1
• Made in the USA: Yes
• Phase: 1 Phase
• Product Weight: 115 lbs
• RPM: 1450
• Speed: 1 Speed
• Voltage: Choice Dependent
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 16
• Max. BHP: 1.08
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 22 @ 1/4 SP
• CFM @ Zero Static Pressure: 4135

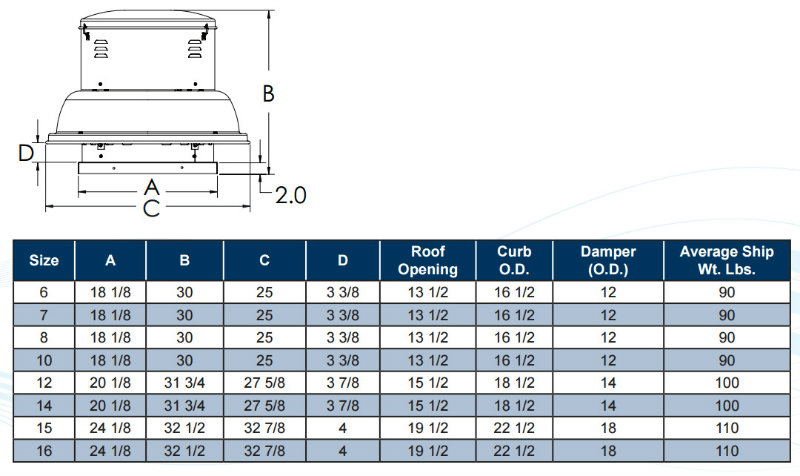

• Roof Opening (In.): 19.5
• Width (in.): 32.875
• Depth (in.): 32.875
• Height (in.): 32.5
• Net Weight (lbs.): 110
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
